Marcam x-ray beam ccd camera

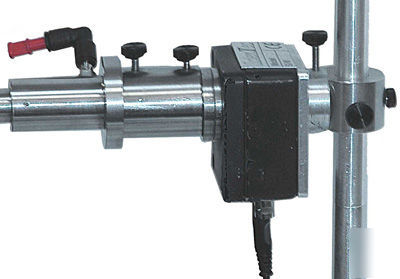

The Marcam is a CCD camera coupled to a screen that converts X-rays into visible light. It will display an image of the direct X-ray beam in 20 fold magnification on a TV monitor.
Marcam CCD-camera with an X-ray to visible light converter screen suitable for the alignment of focusing mirrors, OSMIC multilayer mirrors or monochromators. X-rays are transformed into visible light and magnified 20-fold. The resulting pattern can be visualised on the built-in camera of the mardtb or on a monitor (not included) with the mar345 detector. Active area of converter screen is 8 x 11 mm.
The system consists of the camera unit, a stand with magnetic base and adapter pieces which couple to the mirror system or the crystallographic cradle, thus providing a radiation-safe environment during the alignment procedure.
* NO X-RAY LEAKAGE: The marcam comes with a set of adapters, that allow you to couple it directly to the X-ray optics to be aligned. The beam is completely enclosed and the user does not risk exposure to scattered X-rays.
* WORK WITH ADEQUATE LIGHT: Since the marcam displays the image of the beam on a TV monitor, there is no reason to turn the room lights off. Alignment procedures can be completed in adequate lighting to see small parts.

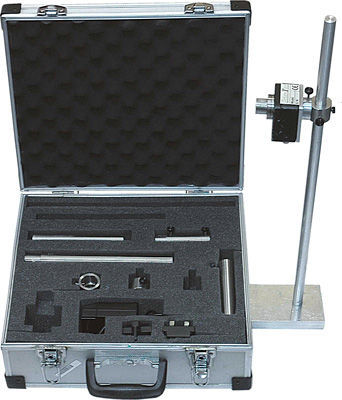

* COMPLETE AND PORTABLE SYSTEM: The marcam is delivered in a briefcase sized metal carrying case. It includes the camera unit, several adapters for use with different X-ray optics , all cables, and a stand with a magnetic base.
* MANY APPLICATIONS: The marcam replaces the fluorescent paddle and pin diode. It is useful for aligning monochromators, multilayers and focusing mirrors. It can also be used to check the focus of a rotating anode.
* SAFETY: The marcam eliminates X-ray scatter and leakage during the alignment procedure. It also frees the hand that traditionally holds the fluorescent paddle. Since the image is displayed on a TV, there is no need to lean into the radiation enclosure and get close to the beam to see the result of adjustments.
* AFFORDABILITY: The marcam is priced to replace your pin diode and fluorescent paddle. Contact us for a quotation based on your specific needs.
