> Racal dana 1260-35 scanner / multiplexer

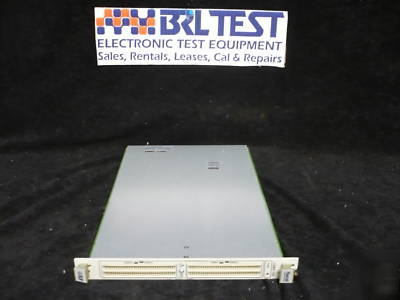

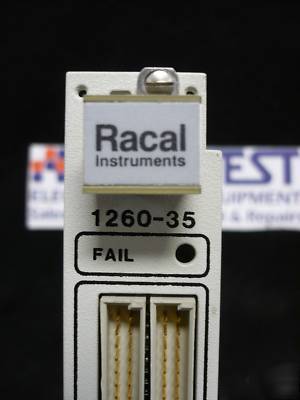

Racal dana 1260-35 scanner / multiplexer
The Racal Dana 1260-35 is a high-density scanner or multiplexer, ideal for applications with large switch requirements such as continuity testing, and audio or telephone line switching. The 1260-25 can be user-configured in many ways, from a 1x96 two-wire to sixteen 1x6 two-wire multiplexers, switching up to 250 VDC and 1A per channel. An additional relay that selects between the high and low sides of the two-wire mode allows the 1260-35 to act as a 1x192 1-wire scanner. The 1260-35 is supplied with crimp pin type user connectors, and the 1260-35 with ribbon cable type mating connectors.
