1977 jungenthal vertical turret lathe

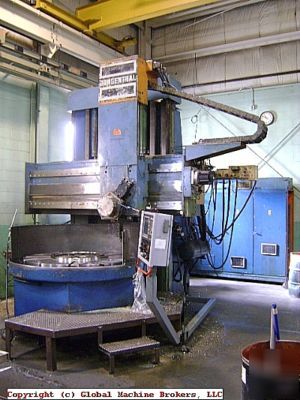

1977 Jungenthal Vertical Turret Lathe
CONTROL: DYNAPATH DELTA 2000T CNC
TABLE DIAMETER................. 66"
MAXIMUM SWING.................. 78"
CUT HGHT. UNDER CROSS RAIL..... 60"
HEAD VERTICAL TRAVEL........... 30"
SPEEDS......................... 260 RPM
MAX TRAVEL OF CROSS RAIL....... 32" (4" INCR.)
MAIN DRIVE MOTOR............... 50 HP
GROSS WEIGHT................... 87,000 LBS.
* CROSS RAIL SLIDE ROLLS ON PRELOADED WAY BEARING, GUIDED AND
SUPPORT BY HARDENDED AND GROUND RAILS (LINEAR WAYS)
* CROSS RAIL WITH POSITIONING SYSTEM AND HYDRO-MECHANICAL
* CENTRALIZED LUBRICATION SYSTEM FOR BALL SCREW NUTS AND CROSS
* PATENTED FACEPLATE RIGID BEARING SYSTEM FOR HIGH PRECISION,
* AUTOMATICALLY OPERATED TURRET
