Rf power reference, ham, cb, qst 04/07, W1GHZ

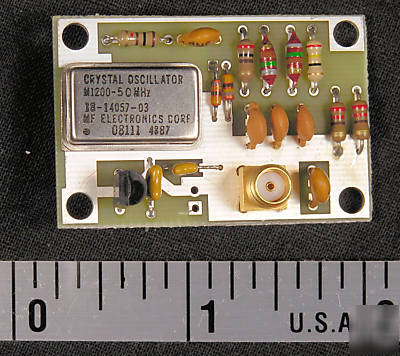

This kit contains one professionally made p.c. board, 1.25 x 1.75 x .062 and all parts. The output is 10dBm at 50MHz. (the same as the calibration on the HP meters) and the board requires +8 to 15 volts. There is no RF or DC calibration needed. This small project was designed by Paul Wade W1GHZ to calibrate the ABPM sold by Down East Microwave or the HP430, 432, 435 and most other power meters.
