PRF01R rfid proximity reader for em card

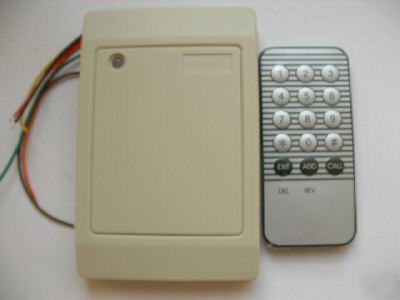

Brand New PRF01R RFID Proximity Reader for EM Card
This reader can work well with our RFID token and card.
Dimension: 11.2 cm X 7.5 cm X 1.7 cm
Working Temperature: -20C to 50C
Relay on for 1 second on authorization granted
Relay on for 5 seconds on authorization granted
Cards can be added and removed by using management cards or infra red remote.
You can configure 2 management cards, 1 for adding new cards and another one for removing cards
Set Switch 2 to ON (Configure Mode)
Present the first management card to the reader (this will be used for adding new cards)
Present the second management card to the reader (this will be used for removing cards)
Set Switch 2 to OFF (Running Mode)
Now you have created 2 management cards (ADD CARD and REMOVE CARD)
The reader should be in running mode and power up
Present the ADD CARD to the reader
Present card(s) you want to add to the reader
Present the ADD CARD to the reader after all cards add
Present the REMOVE CARD to the reader
Present card(s) you want to remove from the reader
Present the REMOVE CARD to the reader after all cards remove
There are 10 buttons with digit and 2 buttons CALL, EXIT on the infra red remote. <1> means press button 1, means press button CALL.
XXXX (factory setting for XXXX is 1234)
<0>XXXXXXXXXX (the 10 digits shown on the card)
<1> present the card to the reader
<2>XXXXXXXXXX (the 10 digits shown on the card)
<3> present the card to the reader
<5> The reader will then log you out
Turn off the relay permanently
<6> The reader will then log you out
<7> The reader will then log you out
<8>XXXX (XXXX is the 4 digits password)
For adding or removing cards, the reader will keep you log on until no operation in 10 seconds.
