Iso 100 double claw clamp (lot of 10)
Regular sale price for 1 is $6.40. For 10 it would cost $64.00.

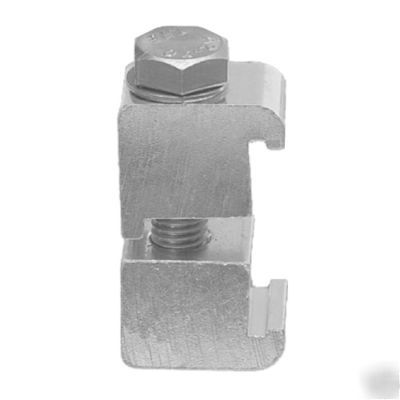

Double Claw Clamp, Fits ISO NW-63, NW-80, & NW-100 Vacuum Flanges, Aluminum
These double claw clamps follow International Standards Organization (ISO) standards and fit flange sizes of NW-63, NW-80, & NW-100. ISO flanged vacuum fittings are commonly used to build process vacuum plumbing and systems for industrial applications. The fittings are quick to assemble using double claw clamps and a centering ring (please see top right figure - click to enlarge). The Viton centering ring contains a rubber/elastomeric o-ring. The ISO standard sizes for large flanges are NW-63, NW-80, NW-100, NW-160, NW-200, NW-250, NW-320, NW-400, NW-500, NW-630. These clamps are made of aluminum.
Fits ISO-LF Flange Sizes: NW-63, NW-80, & NW-100

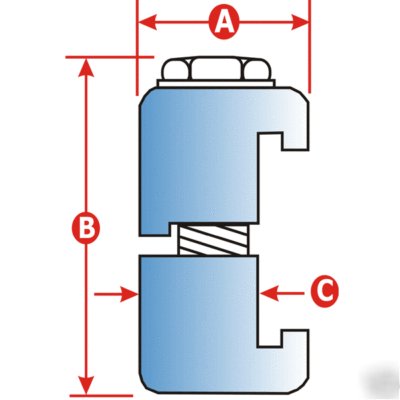

Common Dimensions: A = 0.95" (24mm), B = 1.98" (50mm), C = 0.63 (16mm)
