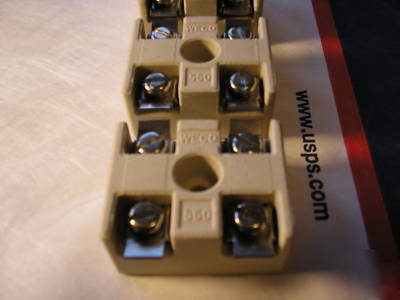

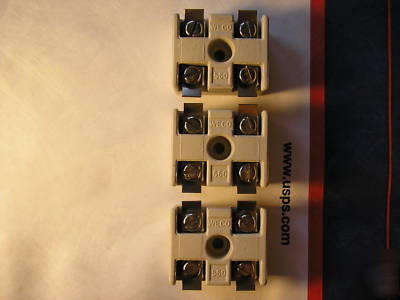

Weco ceramic terminal block ss 560 allied #924-0546
Ceramic terminal blocks are designed for high temperature applications. Type DIN-46284-ST and 4011-B. Specifications . Insulating Material: Porcelain KER 111, DIN 40685 white. Upper Temperature Limit: 200 C/392 F. Type 560-K4DF-V2A Specifications. Insulating Material : Steatite, KER 220 DIN 40685, white. Upper Temperature Limit : 500 C/932 F. UL File E69841. CSA File LR24322.
A 17 mm wide by 2 mm high slot has been molded into the base of each terminal block. This slot can accommodate a suitably shaped rail on the mounting surface to allow securing the block and preventing possible movement caused during the tightening of the screw during the wiring operation.
