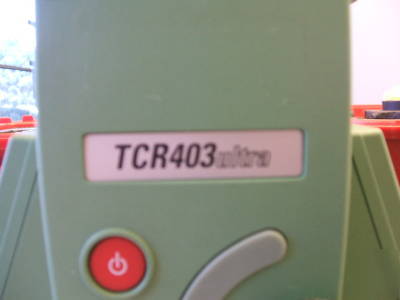

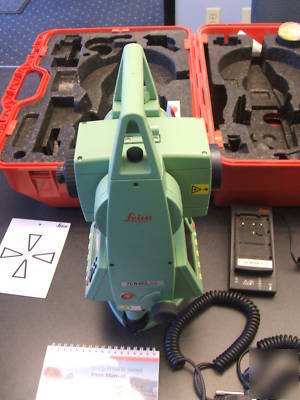

> Leica TPS400 TCR403 tcr 403 ultra total station exc con

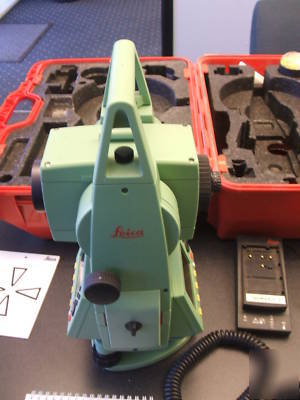

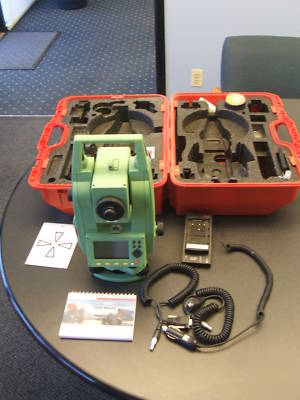

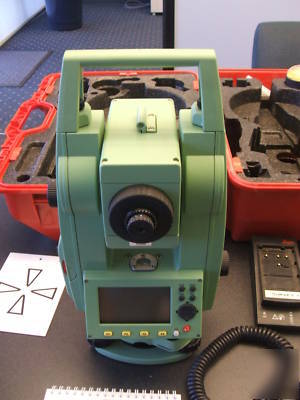

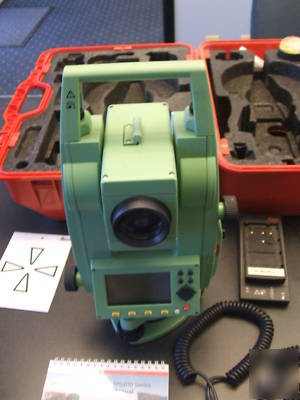

Leica TPS400 TCR403 tcr 403 ultra total station exc con
-Distance Measurement with Reflector (IR-Mode)
Display resolution 1" / 0.1mgon / 0.01 mil
Standard deviation (ISO 17123-3) 3" (1mgon) 5" (1.5mgon) 7" (2mgon)
Field of view 1 30' (26 m at 1 km)
System Electronic 2 axis oil compensator
Distance Measurement on Reflector (IR)
Measuring range with circular prism GPR1 3'500m
Measuring with reflective foil (60 mm x 60mm) 250m
Standard deviation (ISO 17123-4) (fine/quick/tracking) 2mm + 2ppm/5mm + 2ppm/5mm + 2ppm
Time for a measurement (fine/quick/tracking) typ. 2.4 s /0.8 s / < 0.15 s
PinPoint-Reflectorless Distance measurement (RL)
Range: PinPoint R400 ( power ) > 400 m (90% reflective)
(Medium atmospheric conditions) PinPoint R1000 ( ultra ) > 1000 m (90% reflective)
Laser at GPR circular reflector 7'500m
Standard deviation (ISO 17123-4) 0 500m 2mm + 2 ppm
Time per meas. typ. 3 6 s, max. 12 s
Point size at 100m 12 mm x 40mm
Internal data storage 12'500 measurements or 18'000 fixpoints
Data formats GSI/IDEX/ASCII/DXF/Freely definable formats

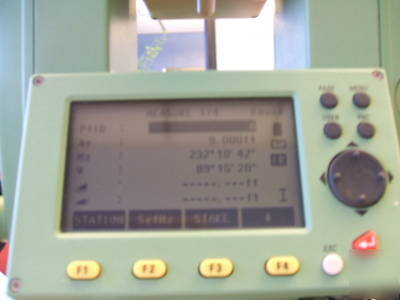

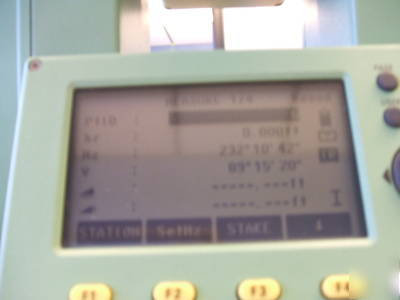

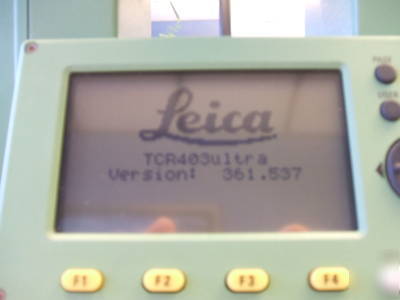

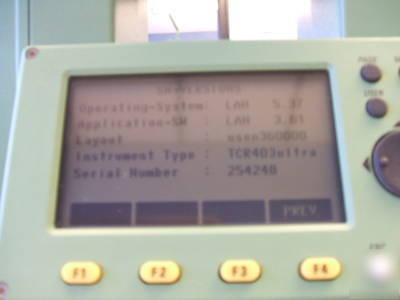

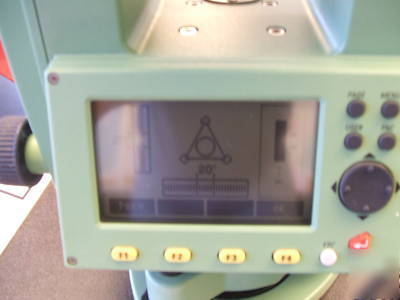

Display Graphics 160 x 280 pixels,
Alphanumeric 8 lines x 31 characters
Type Laser point, brightness adjustable in steps
Accuracy 1.5mm at 1.5 m instrument height
Temperature range (operation) -20 C to +50 C (-4 F to +122 F)
Dust and splash proof (IEC 60529) IP55
Weight including battery and tribrach 5.2 kg
Operating period with GEB121 approx. 6 hours
Number of distance measurements with GEB121 approx. 9'000
-PinPoint R400 Distance Measurement without Reflector (RL-Mode)
-PinPoint R1000 Distance Measurement without Reflector (RL-Mod
-PinPoint R1000 Distance Measurement without Reflector (RL-Mode
