Avt oscar f-510C irf c-mount ccd firewire camera 5MP

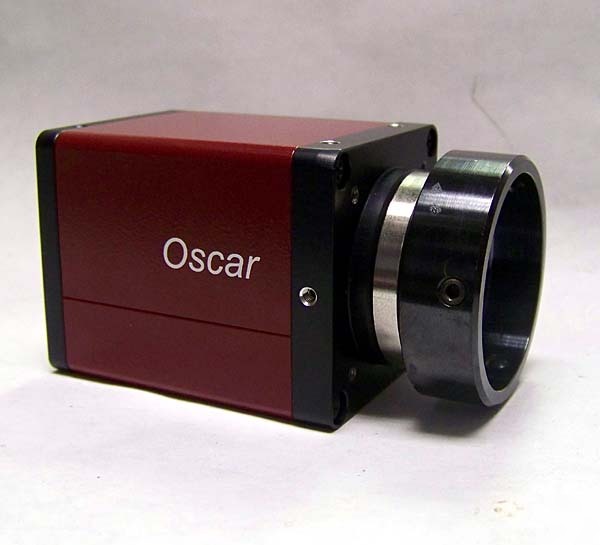

AVT Oscar F-510C IRF C-Mount CCD Firewire Camera 5MP
High-end 5 Megapixel 1394 camera for still imaging
The Oscar F-510C is an excellent camera for sophisticated still imaging. It includes a frame readout Sony CCD sensor.
* B/W signal out of luma interpolation (Y = 0.3R + 0.6G + 0.1B)
* B/W signal out of R, G or B channel information
Benefits of the b/w output interpolation modes:
* In some applications, such as ophthalmology with contrast input, only one color is needed for evaluation.
* For applications with monochromatic lighting, noise can be reduced by using only the respective color channel instead of the fully interpolated luma signal.
* The Oscar can use the three primary colors (R, G and B) separately and output them in a reduced data monochrome mode.
* Max frame rate at full resolution: 3 Hz
* Interface: IEEE 1394a - 400 Mb/s, 1 port
* Body Dimensions (L x W x H in mm): 72.5 x 44 x 44 mm
