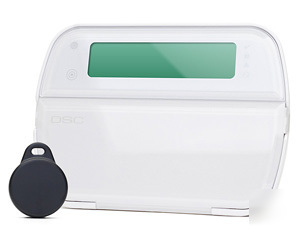

Dsc WT5500P alexor wireless alarm lcd keypad PT4 prox
* Proximity Arm/Disarm (WT5500P Only)
Protection is Always at Hand with the WT5500P Wire-free Keypad
The compact and sleek new WT5500P Wire-Free Keypad is designed to work with the Alexor Wireless Panel. Since Alexor is mounted in a secure location within the home away from main access areas the WT5500P provides an easy-to-use and convenient main interface to the system. And with handy wall or free-standing desk stand mounting options and the ability to connect up to four keypads per system, installers can offer homeowners more choice in where keypads may be located throughout the home. The WT5500P can be conveniently located on the wall just inside the front door or on a deskstand in the kitchen or even near a bedside Break Free from Wires & Lengthy Installs The WT5500P is entirely wire-free. With batteries as its main power source, it does not require any drilling or electrical wiring for its installation and operation. With the wall mount option, the installer simply affixes the wall plate (included) onto the wall and sits the keypad on the plate. Keypad programming is simple and fast with DSC s Quick Enroll feature. The keypad also
The signals between the WT5500P and Alexor are fully encrypted. This prohibits unauthorized interruption or interception of the communication between the keypad and Alexor. And even though it is wire-free, if the WT5500 is ever tampered with or the power is removed, its off-line status will immediately signal Alexor and the system will instantly go into alarm, alerting authorities.
Although compact, the WT5500P still offers a host of the great features you expect from DSC keypads. These include the multiple door chimes feature which allows for pre-programmed chimes to identify specific zones. Zones can include anything from front doors, to patio doors to pool gates or specially protected cabinets. Audible beeps provide notification of alarms, entry/exit delays or status conditions and troubles. The WT5500P also features a large, easyto-read 2x16 display and contoured, programmable, illuminated keys, as well as one-touch function keys and universally recognized icons. The WT5500P, which mirrors all the features of the WT5500P, also offers proximity functionality. The prox tag*, the PT4, (a small tag, easily attached to a key ring) allows a homeowner to arm and disarm their system, without using a code.
When the wire-free keypad is not in use, it moves into a battery preservation mode while remaining entirely online. The keypad is also equipped with a light sensor which determines the ambient light in the area and automatically adjusts the display and key backlighting. These features extend battery life. When the batteries are low, an indication light alerts the end user to change them. The user can easily remove the product from the wall mount, take off the backing and make the replacement. When the WT5500P is wirelessly connected to the WT4911 outdoor siren (equipped with a temperature sensor), the keypad also displays the outdoor temperature.
