CS8416 192KHZ digital audio interface receiver 28-soic

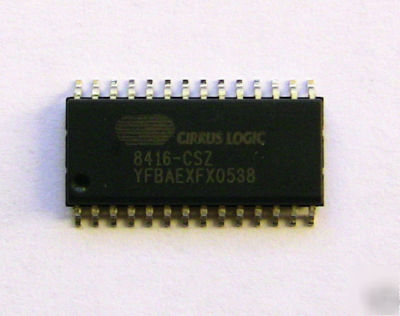

CS8416-CSZ 192kHz Digital Audio Interface Receiver 28-SOIC
The CS8416 is a monolithic CMOS device which receives and decodes one of 8 channels of audio data according to the IEC60958, S/PDIF, EIAJ CP1201, or AES3 interface standards. The CS8416 has a serial digital audio output port and comprehensive control ability through a selectable control port in Software Mode or through selectable pins in Hardware Mode. Channel status data are assembled in buffers, making read access easy. GPO pins may be assigned to route a variety of signals to output pins A low jitter clock recovery mechanism yields a very clean recovered clock from the incoming AES3 stream. Stand-alone operation allows systems with no microcontroller to operate the CS8416 with dedicated output pins for channel status data. Target applications include A/V receivers, CD-R, DVD receivers, multimedia speakers, digital mixing consoles, effects processors, set-top boxes, and computer and automotive audio systems.
High-End Audio/Sound Card for PC
Other Applications Requiring S/PDIF Receiver
