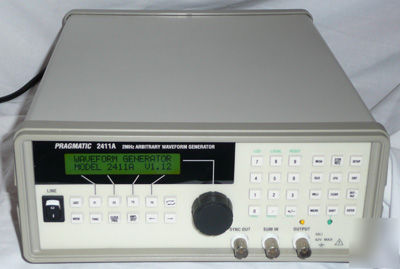

Pragmatic 2411A 2 MHz Arbitrary Waveform Generator & Manuals
The Pragmatic 2411A is a general purpose Arbitrary Waveform Generator for frequencies less than 1 MHz. Designed for local (keypad) or remote operation VIA GPIB & RS-232C interface. Featuring .005% distortion with 16-bit vertical resolution the 2411A is a very high-fidelity AWG. THD plus noise is typically less than -86 dB. Such a high resolution and low distortion make this an excellent unit.
Waveforms (Sine, Square, etc.) Pulse, Sine, Square,
Maximum Frequency, Sine wave: 2 MHz
Maximum Frequency, Square Wave: 2 MHz
Maximum Frequency, Triangle Wave: 2 MHz
Maximum Frequency, Pulse: 2 MHz
Trigger Modes Burst, Gate, Hold, RTS, Toggled, Trigger
Trigger Sources: Internal, External
+/-Sawtooth,DC,+/-Exponential Waveforms
AM,SCM,FM,Haversine,Lin/Log Sweep Wavefo
Gaussian,Sinx/x,Circle,Noise Waveforms
http://www.test-and-measurement.net/images/Manuals/2411A.pdf
As you can see the unit is in excellent condition and performs great
The following Manuals & Documentation are also included:
Pragmatic 2411A Operation Manual
Pragmatic ABC of Waveform Generation
Pragmatic Waveform & Sequence Output Quick Reference
Pragmatic ARBLink Software Operation Manual
Pragmatic Waveform Generator as Function Generator
Pragmatic Waveform Applications
Pragmatic 2202A 2411A Quick Reference Guide
