Samsung S3C2440 ARM9 board - MINI2440 from friendlyarm

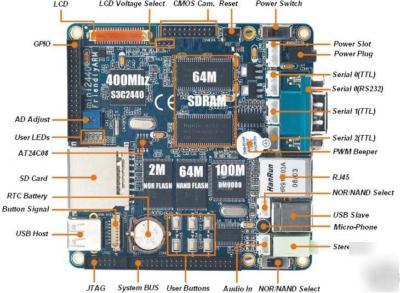

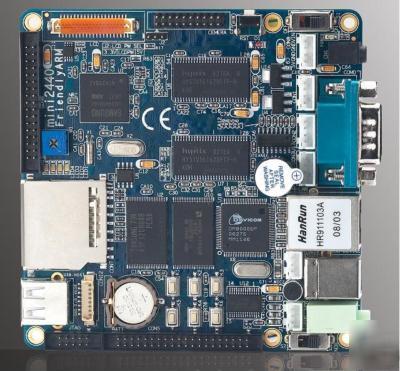

MINI2440 SAMSUNG S3C2440 ARM9 Computer Board
2MB Nor Flash, BIOS installed
4 wire resistive touch screen interface
Up to 4096 color STN, 3.5 inches to12.1 inches, up to 1024x768 pixels
Up to 64K color TFT, 3.5 inches to 12.1 inches, up to1024x768 pixels
1 x 10/100M Ethernet RJ-45(DM9000)
3 x Serial Ports(1 RS232 with CTS and RTS)
1 x Stereo audio out, 1 Micro In
1 x POT can be used for A/D converter adjust
1 x Power In(5V), with switch and lamp
1 x S3C2440 board (Preload with Linux)
1 x Parallel port wiggler JTAG emulator(for H-JTAG)
1 x DVD-ROM with product reference
(2) Windows Flash Programmer SJF2440
(3) Linux Nand Flash Programmer Jflash-2440(source code included)
(5) Bitmap to C Language transfer tool
(7) vivi source code(linux bootloader)
(8) LED test program(ADS1.20 project)
(9) 2440test program(ADS1.20 project), include :
key test, RTC test, ADC test, IIS Audio play(wav), IIS Audio record,
touch screen test, I2C test, Samsung 3.5"LCD, 640x480 TFT test
(10) WindowsCE 5.0/6.0 BSP and sample project files.
(11) Pre-compiled WinCE 5.0/6.0 image for evaluation
(12) Linux tool and kernel source code
- arm-linux-gcc-4.3.2 with EABI
- yaffs2 file system image maker -mkyaffs2image
- linux-2.6.32 for S3C2440 kernel source code(include DM9000, LCD driver, Audio,
Touch screen, YAFFS Source code, SD Card, RTC, Expand serial driver,
USB Camera,USB Mouse and Keyboard, U-Disk)
(13) Pre-compiled Linux image for evaluation
(14) Qtopia 2.2.0 source codes, web browser source codes
(15) uCos2 source code and binary images
(16) Schematics(Protel99SE/PDF)
