Parker mv-10-6324-01 ¼†3-way manual diaphragm valve

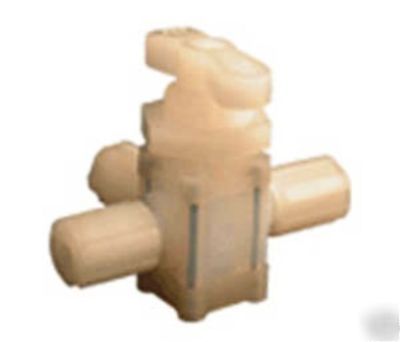

Parker Partek MV-10-6324-01 3-Way Manual Diaphragm Valve
$210.83 each (OEM 06/08/09 MQF)
BRAND NEW! FACTORY SEALED PKG!
* One piece precision machined diaphragms manufactured from the latest technology modified PTFE. Provides over five times the flexural life as compared to conventional PTFE. Tongue and groove seat and diaphragm for positive through flow shut off and diaphragm to body seal.
* PVDF coated stainless steel spring.
* Quarter turn operation with removable handle for tamper resistance.
* Reduces effects of corrosive environments.
* Eliminates need for separate lockout device.
The MV-10 3-Way Diaphragm Valve is designed for use in high purity semiconductor applications. It is also ideally suited for ultra-pure water and aggressive chemical or gas applications. The design utilizes a molded high purity PFA body with precision machined sealing areas. A one piece machined modified PTFE diaphragm is also utilized for excellent flexibility and life. A full 1/4" orifice provides maximum flow capability in a compact package.
* Materials of Construction: Wetted Surfaces - PFA, Modified PTFE; External Surfaces - PFA, PVDF, 18-8 stainless steel; Other Materials - Viton seals, PVDF coated stainless steel springs.
* Pressure Ranges: Forward 27'' Hg vacuum (913mbar) to 80 PSIG (5.5 bar); Back 27'' Hg vacuum (913mbar) to 80 PSIG (5.5 bar); Pressure ranges above are for operation at ambient temperature. For use at higher temperatures see technical information.
* Temperature Ranges: 0 - 150 F (-17 - 66 C) Ambient; 0 - 266 F (-17 - 130 C) Fluid
* Port Configuration: Parflare
