> Diagnostic instruments HRD100-cmt microscope coupler
Diagnostic instruments HRD100-cmt microscope coupler

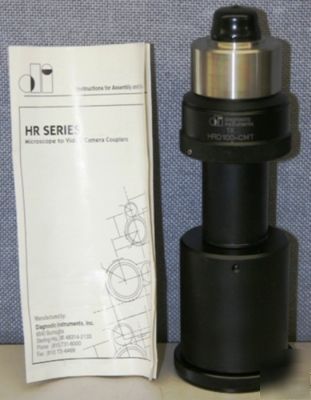

Diagnostic Instruments HRD100-CMT 1.0X 1CCD Microscope Coupler T102NMC Intel
* High Performance lens system for high resolution digital cameras
* Multi-coated lenses & twist style focus
* Available in C and Nikon F Mounts
* Interchangeable bottom clamps for nearly all microscope models allows use of one coupler to support multiple microscopes
* Variety of Magnifications: Variety of coupler magnifications allow for maximum field of view size or increased magnification on TV monitor.
* Variety of Camera Mounts: Variety of camera mounts allow attachment of single chip, video and digital cameras.
* Interchangeability: Adaptable to virtually any microscope allowing the sharing of video cameras among different microscope models / brands in the same laboratory.
* High Resolution: High resolution optics provide sharp, high contrast, flat field images. The HRD couplers have been specifically designed to give higher resolution with digital cameras and features a fully multi-coated lens system.
* Precise Focusing: Precise, easy to use focusing mechanism for parfocality adjustment. A lockable twist style focus mechanism is standard on all HR couplers.
* Elegant Finish: Black anodized satin finish adds elegant look to the system.
* Camera Mount: The HRD coupler system can adapt C-Mount and Nikon F Mount video or digital cameras. The C-Mount style is found on single chip analog CCD cameras, some cooked chip CCD cameras and some digital cameras. The Nikon F bayonet style is found on digital CCD cameras.
* Parfocalizing Adjustment: A twist style parfocalizing adjustment is standard on all couplers. The focusing mechanism allows the user to achieve simultaneous focus through the microscope eyepiece and TV monitor. All versions have a handy focus lock to prevent movement of the collar once adjustment is made.
* HR Coupler Magnification: Each HRD coupler contains a relay lens to project the microscope intermediate image onto the camera CCD chip. A variety of magnifications are available which allow the user to achieve the desired field of view for various CCD formats (1/3 , , 2/3 , etc.). The RD couplers are specifically designed to provide higher resolution with digital cameras.
* Bottom Clamp: Because microscope phototubes vary greatly in size and dimensions, we use a variety of microscope bottom clamps to adapt our couplers to virtually every microscope on the marketplace. These clamps slide over the end of the video coupler and provide secure attachment to the microscope. The HR Series video coupler and bottom clamp typically adapt to the vertical phototube or port (phototube removed) in compound and stereo microscopes. On inverted microscopes, the phototube or photoport is usually on the side of the microscope. If the microscope does not have a phototube, the coupler can sometimes be adapted to the microscope eyepiece tube.
* Bottom Clamp Style: Standard
