> Allen bradley ab 1756-IF16 /a 1756IF16 17561F16 analog
Allen bradley ab 1756-IF16 /a 1756IF16 17561F16 analog
Rockwell Automation > PLC & HMI > I/O Products > ControlLogix > 1756-IF16/A
Allen-Bradley 1756-IF16 ControlLogix Analog Input Module, Current/Voltage, 16-Point (36 Pin), Series A
1756-IF16 - Number of Inputs: 16 single-ended, 8 differential, 4 high-speed differential; Input Range: +/-10.25V (15 bits plus sign bipolar), 0-10.25V (16 bits), 0-5.125V (16 bits), 0-20.5mA (16 bits); Data Format: Integer mode (Left justified, 2s complement), Floating point IEEE 32 bit. Input impedance: Voltage: >10 M , Current: 249 ; Channel bandwidth: 15 Hz (-3 dB); Module input scan time, min: 25 ms min floating point, 10 ms min integer; Backplane Current: 150mA @ 5.1V dc & 65mA @ 24V dc (2.33W).
The 1756-IF16 module supports On-board data alarming, Scaling to engineering units, Real-time channel sampling, IEEE 32-bit floating point or 16-bit integer data formats. Each 1756-IF16 module mounts in a ControlLogix chassis and requires either a removable terminal block (RTB) or a 1492 interface module (IFM) to connect all field-side wiring. Required Removable Terminal Block Housing: 1756-TBCH or 1756-TBS6H.

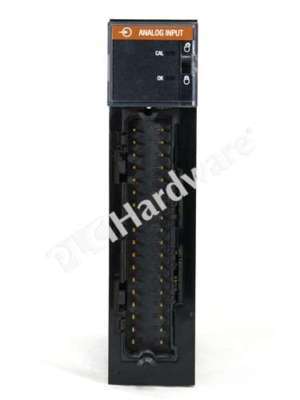

One Allen Bradley 1756-IF16 Series A, ControlLogix Analog Input Module, Current/Voltage, 16-Point (36 Pin), in excellent working and cosmetic condition.
The unit is Series A, Cat. Rev. L01, Rev. B01, F/W Rev. 1.5, Manufactured in 05/05.
