3.3 mp microscope digital cooled ccd camera w/ video
2048X1536 PIXEL (3.2 MP) Color microscope Digital Cooled CCD Eyepiece Camera w/ USB2.0
This camera has the most advanced softwares compared to others' in that:
* Extremely high resolution, sensitivity for low light applications, such as fluorescent imaging;
* Allows you to capture both time lapse video and still images.
* Fully functional post processing and measurement capability, including size, angle, area, recticle, cell count, contrast, sharpness, exposure control, white balance, color offset, layers.......... ect.
* Special fluorecent imaging software included!
* Fully supports Window systems 2000/XP/2003/Vista /2008/Win 7
* You can use others software like Amcap, ACDSee, PhotoShop or your own application to records live videos on your computer with included DSHOW and TWAIN drivers
* Generaous FREE accessories such as 0.5X lens, 0.4 X lens, stage calibration micronmeter etc.

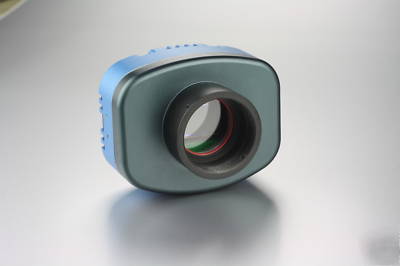

This CCD cooled microscope digital camera system can provide high-quality scientific grade digital images by using premium quality CCD chip and peltier cooling device. It is ideal for any imaging applications that require high resolution, speed and sensitivity. With low noise electronics and a high quantum efficiency, this camera can capture a wide range of dynamics intensities, while maintaining quantitative linearity. The added outstanding features such as a fast analog to digtal converter (ACD), very low read noise and programmable gain control make the camera an ideal detector for fluorescent imaging applications!
A Peltier cooling mechanism was used to cool down the imaging area to 30 C below room temperature (compared to its un-cooled state). This cooling device enables the camera to supress the thermal background noise and obtain high-contrast images, especially when capturing fluorescence images that requires long exposure times.
Why choose our telescope digital camera?
1. Digital USB2.0 telescope camera, faster imaging transfer
2. Higher desnity pixel up to 2080x1536 (3.3 MP)
3. Peltier cooling mechanism for high optical sensitivity and high resolution for long time exposure
4. High optical resolution, crispy images!
5. Extra large of view field up to 18mm
6. Fitting 23.2, 30 and 30.5 mm O.D. ocular tube microscope
7. No addiotnal accessories required
8. Coupling through ocular tube
9. CE certified for European application
12. Again, anything you concern, we care!
R, G, B primary color mosaic filters
5fps(2080 x 1536) 30fps(640 x 480)
Image size, bright, gain, exposure time, RGB

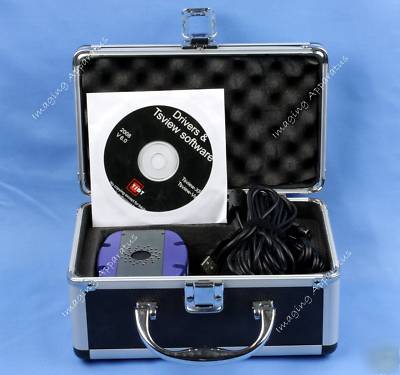

1. 1x 3.3 MP cooled CCD microscope digital eyepiece camera
4. Free stage calibration micronmeter
5. Free user-friendly advanced softwares
6. Software installation manual
7. Fast and strong technical support
