Bio-Rad GS-800 Calibrated Personal Densitometer BioRad
Bio-Rad GS-800 Calibrated Personal Densitometer

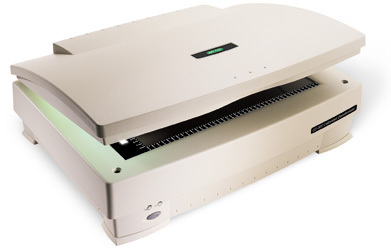

You are looking at a Bio-Rad GS-800 Calibrated Personal Densitometer. This scanner was removed from a lab upgrade and is in good working condition.
The GS-800 calibrated densitometer delivers automatic calibration for superior accuracy, resolution, and image quality. With a 30 x 40 cm (11 x 16") imaging platen, 12-bit data collection, and resolution down to 36.3 um, the GS-800 is the perfect densitometer for all your protein and nucleic acid applications. Features of the system include:
Automated self-calibration for accurate quantitation
Variable scanning resolution for optimum image acquisition
12-bit (4,096 gray levels) data collection for greater linearity and sensitivity
Dynamic range from 0 to 3.0 OD
Scanning white light (400-750) nm illumination for high sensitivity
Transmittance and reflectance collection for imaging a wide variety of samples
Sealed platen for imaging of wet samples
Modified transparent lid for safely imaging samples of variable thickness
Flexible High-Resolution Imaging
The GS-800 calibrated densitometer provides quantitatively accurate, high-quality imaging to detect and resolve even the faintest bands. With user-selectable scan resolution down to 36.3 um, you can preview and scan your samples in seconds. Variable resolution also allows you to control both the scanning time and image file size.
The GS-800 calibrated densitometer offers high sensitivity. The color CCD camera can scan in red, green, or blue, and scans virtually any sample (1-D and 2-D gels, colorimetric dot and slot blots, film-based chemiluminescent blots, autoradiograms, slides, and photographs) at the ideal wavelength for greatest sensitivity and accuracy.
Unlike laser densitometer systems, the GS-800 calibrated densitometer has both transmittance and true reflectance capabilities that allow accurate scans of both transparent and opaque samples. The advantage of true reflectance scanning is the accurate detection and analysis of molecules on the surface of membranes, rather than molecules distributed throughout the membrane matrix. True reflectance provides the most accurate detection and analysis of dot blots, slot blots, and other electrophoretic blots without quantitation errors.
Comes with a 30-day DOA warranty. Item comes with what is pictured above. Accessories, cables, etc. are not included unless pictured.
