Miller 903701011 maxstar 200 dx dc tig and stick welder

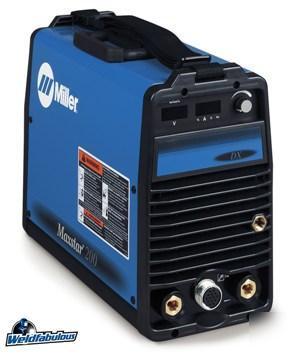

Miller 903701011 Maxstar 200 DX DC Tig and Stick Welder
Miller Electric # 903701-01-1 Maxstar 200 DX
Industry standard - Miller Electric pioneered the Maxstar-type market, now we've perfected it. Maxstar 200 Series provides a solution for every user's needs; from simple to fully automated.
DX Model: When the job demands greater control the DX provides pulse on/off, pulse frequency, peak % time, background amps, initial amps, initial slope time, final slope time, and final amperage control.
Auto-Line provides state-of-the-art flexibility by automatically connecting to 120-460 VAC, single- or three- phase power without removing the covers to relink the power source. No longer is there a concern if you have the correct machine for the shop or the job site.
Portable in the shop or at the job site - at 37lb the unit is easily moved from location to location.
Low OCV Stick is a simple design that reduces open-circuit voltage to 9-14 VDC when power source is not in use. This built-in circuit design eliminates the need for add-on voltage reducers.
Inverter-based, DC power source has state-of-the-art operator interface allowing the user extra set-up capabilities in a compact machine. Features more precise control of output parameters than traditional knobs and switches.
Programmable HF start parameters allows the operator to independently set HF starting conditions based upon electrode diameter and material thickness for each application.
* Pulsed TIG (GTAW-P) with DX and LX models
* TIG: 175 A at 17 V, 60% Duty Cycle (1 or 3-Phase)
* Stick: 150 A at 26 V, 60% Duty Cycle (1 or 3-Phase)
