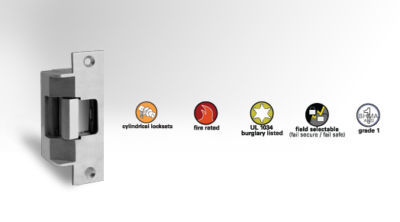

Hes 7500 series electric strike 7501-12D-630
Here are some details from the hes website:
The 7500 series electric strike is ideal for fire-rated applications with pre-load conditions which may be caused by a warped or misaligned door, weather stripping, a smoke seal or any other condition that could cause door bind. The solenoid is internally mounted for compactness, making the 7500 series electric strikes easy to install in hollow metal, concrete filled metal, and wood jambs.
* UL 10C, fire-rated, 3 hour (fail secure only)
* CAN4-S104 (ULC-S104) fire door conformant
* UL 1034, burglary-resistant listed
* ANSI/BHMA A156.31, Grade 1
* NFPA-252 fire door conformant
* ASTM-E152 fire door conformant
* MEA New York City accepted
* UBC-7-2-94, Uniform Building Code
* .45 Amps @ 12VDC continuous duty
* Static strength 1,500 lbs.
* Dynamic strength 70 ft-lbs.
* Field selectable fail safe/fail secure
* Accommodates pre-load (fail secure only)
* Internally mounted solenoid
* Strike body depth 1-11/16"
* Five year limited warranty
