Vero total access case cabinet enclosure 212-201460B

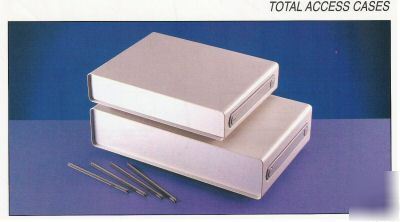

This is a New Old Stock 'Total Access' case from 1996. Note: Photo is of similar cabinets, check the dimensions below. To quote from the Vero Catalog:
The total access case covers all applications requiring a stylish, high quality desktop case for instruments requiring all-round access. Concealed front panel fixings are incorporated into the design to give a clean frontal appearance. It offers the ultimate in versatility and accessibility.
Total accessibility is achieved by the simple release of the four side retaining screws. The front panel, chassis side members and rear panel form an integral chassis which can be worked on prior to assembly of the top and bottom covers. Anti-slip, moulded tilt feet give an improved viewing angle of the front panel.
Top and bottom covers: 0.9 mm Zintec coated steel
Front and rear panels: 3 mm satin anodized aluminum
Chassis side member: 0.9 mm Zintec coated steel
Side infill: Alloy die casting
Colors: Top and bottom cover, light grey; infills and feet, mid grey

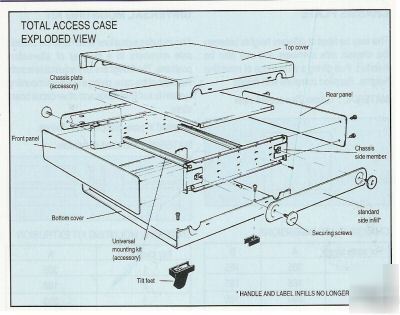

Top cover, Bottom cover, 2 chassis side members, 2 side infills, 4 security screws, 4 feet, Front panel, Rear panel, Screw kit. (Note: Optional accessory mounting rails shown in the photo are not included, nor is the optional accessory chassis plate referred to in the 'exploded view'.)
305 mm W x 260 mm D x 100 mm H. Front Panel 95 x 300 mm
Internal Depth 235 mm. Internal Width 268 mm.
