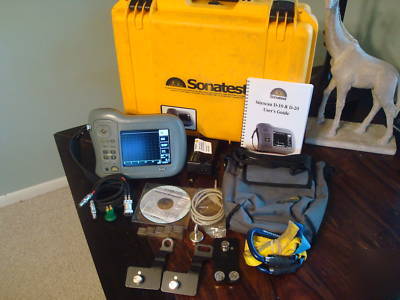

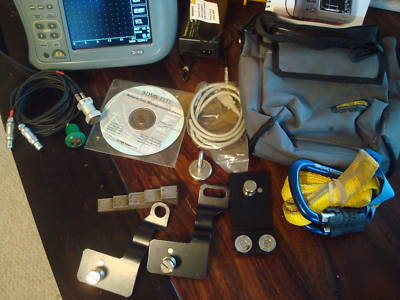

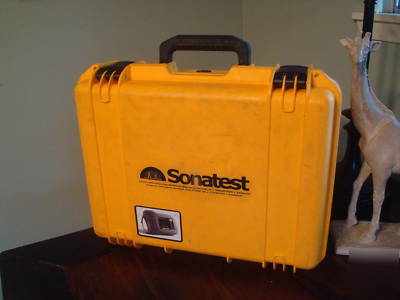

Sonatest sitescan d-10 ultrasonic flaw detector meter
Test Range 5mm (0.2in) up to 5,000 mm (200 in.) in steel. Variable in sequence 10mm or 1mm.
Delay 0-5,000m at steel velocity in 0.05 steps (0-200 in 0.002 in.
Gain 0 to 110dB in 0.5, 1, 2, 6, 10, 14 and 20dB steps.
Test Modes Pulse echo and transmit/receive.
Gate Start & Width adjustable over full range. Amplitude 0-100%,
0.5% steps visual and audible alarms. Positive triggering.
Depth Depth and amplitude of first signal in gate.
Echo-Echo Echo-to-Echo distance measurement. (single gate)
Trig Trigonometric display of beam path, depth and surface distance.
Calculation of skip depth and curved surface compensation, Xoffset
T-Min Holds minimum thickness in depth mode.
Pulser Voltage Spike - 200 Volt peak amplitude, rise/fall time <10ns into 50
P.R.F Selectable 35 to 500 Hz, in 5Hz steps.

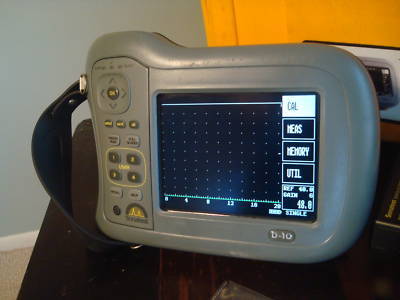

Display Colour Transflective TFT: Display area 111.4 x 83.5 mm (4.39 x
3.29 in). A-Scan Area 315 x 200 pixels max sunlight viewable.
Screen Update Rate 50 or 60Hz.
Rectification Full wave, positive, negative, RF.
Frequency Bands Broadband 1.0 - 15MHz - 3dB.
Vertical Linearity Vertical = 1% Full Screen Height (FSH).
Horizontal Linearity 0.33% Full Screen Width (FSW).
Reject 50%. (LED warning light when selected).
Units Metric (mm) or inch (in).
A-Scan Memory 5,000 waveforms.
Panel Memory 100 stores for calibration settings.
Thickness Logging Storage for 100,000 thickness readings configured either by
Block/Location/Number mode or alphanumeric pre-programmable
worksheets. Readings can be exported to MS Excel
with A-Scan 5,000 A-Scans and Thickness readings.
Auto-Cal Automatic calibration with two echoes.
Display Freeze Holds current waveform on screen.
Active Peak Memory For echo-dynamic pattern capture.
Language Support Six user selectable languages from: English, German, French,
Spanish, Dutch, Italian, Russian, Polish, Czech, Chinese.
USB For connection to PC & printer.
