Progressive electronics PE951 telephone test set w/adsl

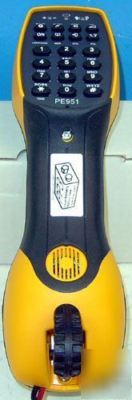

NEW Progressive Electronics PE951 ADSL Compatible Telephone Test Set
Comes with what you see in the pictures. If you don't see it you probably wont get it.
Specifications may not be from manufacturer and may vary slightly due to upgrades, revisions or options this unit may or may not have.
NEW in factory box with a user guide and a battery. The model number indicates that the speaker is amplified.
* Versatile dialing (tone and pulse, built-in ringer with adjustable ring tones, speed dial memory, and last number redial).
* Easy-to-use talk and monitor keys.
* Audible and visual mode indicators.
* Polarity test in any mode.
* Automatic ground-start operation.
* Unique quick-release belt clip.
* Premium cordset with bed-of-nails and piercing pin clips.
Line Electrical Specifications:
Maximum Loop Length: 5000 Ohms
Maximum Off-Hook Resistance: 300 Ohms
Minimum DC Resistance in Idle, Monitor, and Lockout: 10 Mohms at 300 VDC
Minimum AC Impedance in Monitor: 400 Kohms at 1 kHz
Line High-DC Lockout Range: 120 VDC minimum, 450 VDC maximum
Dial Signaling Pulse (rotary dial):
Pulse Rate: 10 pulses per second
Break Interval Resistance: 1 Mohm minimum
Interdigital Interval: 800 s
Dual-Tone Multifrequency (DTMF) Level: -3 dBm nominal
Flash (time-break recall) Duration: 600 s nominal
Speed-Dial Capacity Specifications:
Stored Number Length: 32 digits per storage number
Programmed Pause Duration Battery Specifications: 9 VDC alkaline battery, 4 seconds per key press
Battery Life: 3 months of typical use or 30 hours of continuous loudspeaking
Auto Battery Saver: Warning tone
Power Off When No Line DC: 90 seconds
Power Off With Line DC: 20 minutes
Environmental Specifications:
Operating Temperature: -29 F to 140 F (34 C to 60 C)
Storage Temperature: -58 F to 167 F (-50 C to 75 C)
Dust and Water Resistance: IP67 per IEC 60529
Physical Shock: TRY-TSY-000344 bellcore
