2010 axle gooseneck equipment trailer-20' plus 5' hd
New 2010 Gooseneck Heavy-Duty Equipment Trailer With 3-7K AXLES. This trailer conforms to all applicable US Federal Motor Vehicle standards in effect at date of manufacture. Trailers are issued with SAE seral number and MSO for you to obtain a title.

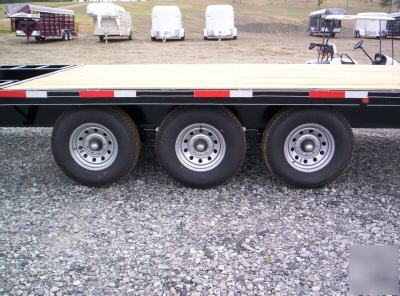

* 10 Ply 16" Heavy Duty Radial Tires
* 3-7,000 lb. Axles, 3" O.D.,.250 Wall,Bolt Pattern 8 on 6 1/2" w/Electric Brakes on All,12" X 2" (SELF ADJUSTING)
* This Trailer is rated for 21,000 GVW
* Standard Brake-A-Way Controller

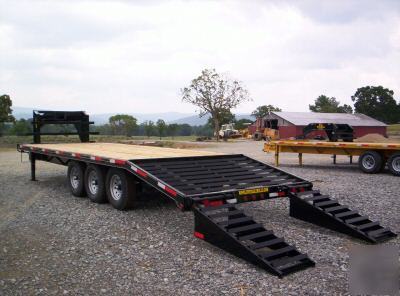

* Spring Assisted Ramps-RAMP SIDES ARE PRE MOLDED FOR STRENGTH-Lay Flush w/Deck when Folded
* 2 Heavy-Duty Jacks-12000 LBS. EACH
* 12" x #19 High Tensile I-Beam on Frame
* Neck risers are Extra tall
* Cross Members are 3" Channel 16" O.C. Standard
* Pressure Treated Southern Pine Deck Boards
* Chain and Boomer Tray on Front-Locking Lid
* 102" Wide w/Stake Pockets and Rub Rails-3/8"x 2" Standard
* Rubber Mounted Lights, Break-A-Way Switch.
* ALL NEW-NO USED MATERIALS OR PARTS
* There is no better trailer built. We use MIG welding by certified welders. All joints are cut on a metal cutting bandsaw where pratical
