> 1 rek digital multimeter capacitance, temp, frequ RA70D

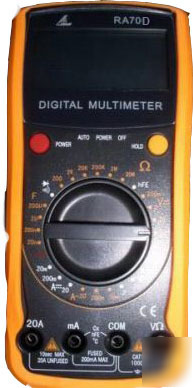

1 rek digital multimeter capacitance, temp, frequ RA70D
(0.5% +1) ~ (0.8% +2)
(0.8% +3) ~ (1.2% +3)
(1.0% +3) ~ (3.0% +5)
(0.8% +1) ~ (1.5% +2)
First input 3V, for silicon PN, range from 500 to 800 mV is normal.
First input 3V, testing circuit over 70 ohm. The two sides of testing circuit less than10 ohm.
Vcc = 3V, Ibo = 10 uA and 1000 MAX
(0.3% +40) ~ (5% +4)
RA70D multimeter, 9V battery, cord, temperature probe, and manual.
