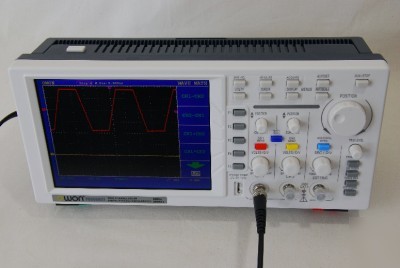

Owon PDS6062T 2 ch 60 mhz oscilloscope 250 msa/s w/fft
Owon PDS6062T 2 Channel 60 MHz Scopemeter 250 MSa/s with FFT and Autoscale and 8" TFT display
The Owon PDS6062T is a 60 MHz bandwidth 2 channel digital storage oscilloscope with a 250 MSa/s sample rate and features an 8.0 inch color TFT-LCD screen with 640x480 resolution. The unit comes with 2 passive probes that are switchable between 1:1 and 10:1 input ratio. Also included is a USB cable, a power adapter, the user manual and a software CD. This is the latest version with FFT! Comes complete with two passive probes.
Owon PDS6062T 60MHz Portable Digital Storage Oscilloscope with 250MSa/s Sample Rate
* Record length of 6,000 points for each channel
* 20 automatic measurement functions
* 8.0 inch Color LCD TFT with high contrast
* Ability to store and recall waveforms
* Automatic setting function
* Multiple waveform calculation function
* Can detect the average and peak values of a waveform
* Edge, video, and alternating trigger function
* Included software allows image to be shown on Computer Monitor
* Multiple language user interface
7.8 inch color LCD,STNscreen,640 480 pixels
Dual channels+ external trigger
Normal sample?Peak detect and Average
5ns/div-100s/div step by 1-2.5-5
impedance,Probe attenuation 10:1)
1M 2% in parallel with 20pF 5pF
1M 2% in parallel with 15pF 3pF
Single: (1 interval time+100ppm reading+0.6ns) Average>16: (1
interval time+100ppm reading+0.4ns)
Sample, Peak Detect and Average
50V(500mV-5V), 2V(5mV-200mV)
6 divisions from screen center
Vpp,Vavg,RMS,Frequency,Period,Vmax,Vmin,Vtop,Vbase,Width,Overshoot
,Preshoot,Risetime,Falltime,+Width,-Width,+Duty,-Duty, Delay A B ?
USB Data Cable (Transfer waveform data to a PC)
In stock in Colorado. 3 year factory warranty! Batteries Available call (***)-532-3303
