New daniel danalyzer model 500 gas chromatograph
Daniel Danalyzer Model 500 Gas Chromatograph NEW!

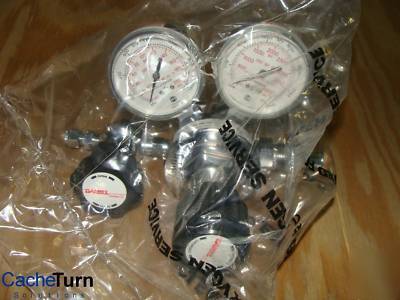

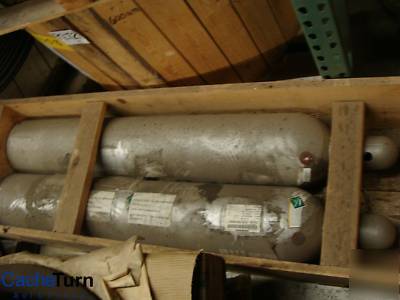

Includes (2) Helium Tanks and (2) Regulators

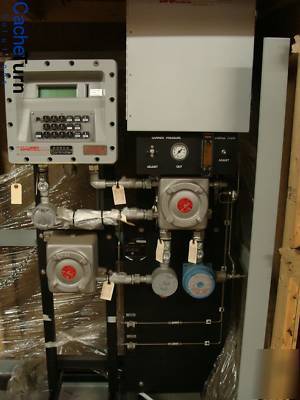

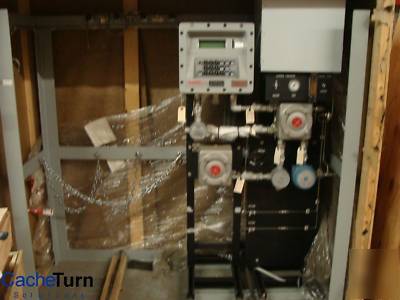

Daniel Danalyzer Model 500 Gas Chromatograph
Daniel s Model 500 Gas Chromatographs offer the broadest range of analysis options available today in a field-mount gas chromatograph. Whether it is heating value measurement, trace contaminant monitoring, pipeline integrity, or product quality/process control, the Model 500 is flexible enough to meet your analysis needs. The proven technology and software of the Model 500 series offers superior reliability and precision, lower installation and operating costs, greater application flexibility, and unmatched measurement performance.
http://www2.emersonprocess.com/siteadmincenter/PM%20Daniel%20Documents/Daniel-Family-of-GC-Brochure.pdf
http://www2.emersonprocess.com/en-US/brands/daniel/gc/BTU-Analyzer/Pages/Model500GasChromatograph.aspx

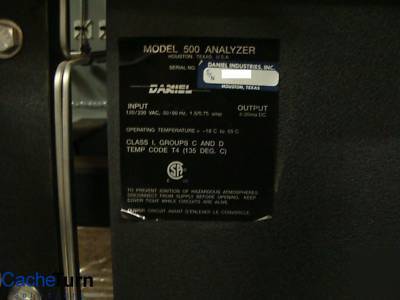

Power: 115 VAC 15%, 220 VAC 15%, 50/60 HZ100 watts running, 350 watts start-up
Environment: -18 to 55 C (0 to 130 F)
Enclosure Protection Rating: NEMA 4
Optional ATEX Certified: EEx d IIB T4amb = 60 C CE marked per ATEX Directive (94/9/EC)
Oven: Airless heat sink, maximum 85 C (185 F)
Valves: 6-port and 10-port diaphragm chromatograph valves. Other types of valves may be used depending on the application such as liquid injection and rotary valves
Carrier Gas: Application dependent. Typically zero-grade helium, nitrogen or hydrogen at 90 psig
Detector: Thermal Conductivity Detector (TCD); up to two depending on application; Flame Photometric Detector (FPD) available (see FPD Module Data Sheet)
Gating Options: Fixed-time, slope and automatic gating of peaks
Chromatograph Control Electronics: Mounted with the gas chromatograph in explosion-proof housing or remotely in 19 rack-mounting
Analog Inputs: Four inputs filtered with transient protection (note that the 4 inputs will be used by the second TCD)
Analog Outputs: Two outputs standard (up to 10 optional), 4 - 20 mA, non-isolated
Serial Communication Ports: Three serial ports standard with option for a total of eight. Depending on the port, choice of RS- 232, RS-422 and RS-485 is available as well as the Modbus protocol
Digital Inputs: One gas chromatograph alarm and four user assignable inputs, optically isolated with transient protection
Digital Outputs: Five digital outputs can be used for alarms, optically isolated with transient protection
Parallel Printer Port: One parallel port available for printed reports
Internal Modem (optional): Field-configurable; 300 to 19.2k baud
Transient Protection: C.E. tested and certified to the highest levels (3 and 4) of the European IEC 801 STD
