5" x 12" myford "precision" plain hand feed od grinder

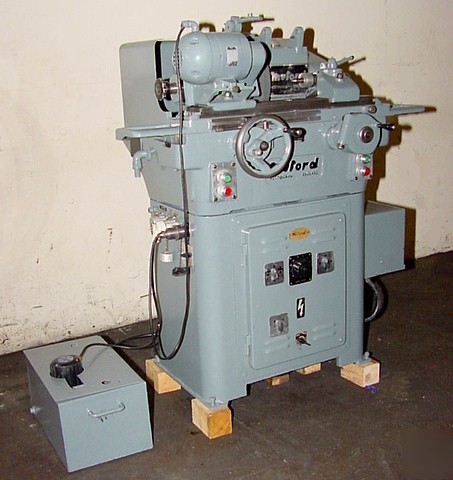

5" x 12" MYFORD "PRECISION" PLAIN HAND FEED OD GRINDER
5" X 12" MYFORD "PRECISION" PLAIN HANDFEED
MODEL: MG12 S/N: S98415BW NEW: 1971
MAXIMUM GRINDING DIAMETER ............................ 3"
SWING OVER TABLE ..................................... 5"
MAXIMUM TABLE TRAVEL ............................ 13-3/4"
CAPACITY BETWEEN CENTERS ............................ 12"
TABLE SWIVELS EITHER WAY ...................... 7 DEGREES
TABLE TRAVEL PER REVOLUTION OF HANDWHEEL ... 2.04"& 0.51"
TOTAL TRAVEL ......................................... 3"
FINE FEED ADJUSTER (NUMBERED DIVISIONS) ......... 0.0001"
WHEEL SPEEDS (2) ........................ 1830 & 1988 RPM
GRINDING WHEEL (RECESSED) ............. 12" X 1-1/2" X 5"
MINIMUM WHEEL DIAMETER FOR ZERO WORK DIAMETER ... 10-1/8"
WHEELHEAD MOTOR .................................. 3 H.P.
WORKSPEEDS, STEPLESSLY VARIABLE ........... 50 TO 900 RPM
CAPACITY THROUGH STANDARD DRAW TUBE ................ 3/4"
MAXIMUM COLLET CAPACITY ............................ 3/4"
WORKHEAD MOTOR ................................. 1/2 H.P.
APPROXIMATE MACHINE WEIGHT ..................... 1500 LBS
AVAILABLE ACCESSORIES FOR THIS MACHINE:
MYFORD INTERNAL GRINDING ATTACHMENT, $1,950
MYFORD SWIVELLING WORKHEAD, $1,500
** SUPERB CONDITION & APPEARANCE - COMPLETELY GONE THRU
