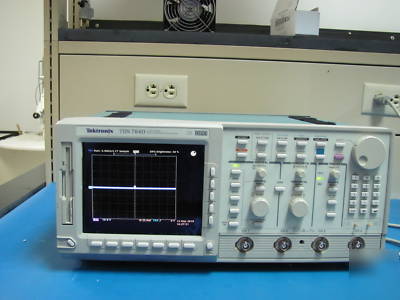

Tektronix TDS784D tds 784D digital oscilloscope 1 ghz
Tektronix TDS784D Oscilloscope, Digital: 1GHz, 4GSa/s, 4 Channel (Stand Alone) with Option 1M
The Tektronix TDS784D oscilloscope is a graph-displaying device it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.
The Tektronix TDS784D oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the moving parts of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.
This scope has been very thoroughly tested with Pulse & Function Generators, Digital Voltage Sources and Frequency Counters. It performs to the manufacturer's specifications in all categories. It has also recently had it's CRT screen replaced with a brand new unit. This replacement should occur every 5-10 years under normal usage.
Performance Characteristics of the TDS784D
* Simultaneous Channels 4 ch
* Simultaneous Maximum Sampling Rate/ch 2 GSa/s
* One ch. only max. sampling rate 4 GSa/s
* Max. Single Shot bandwidth 1 GHz
* Max. Record Length 500,000 pt/sec
* Min. Vertical Sensitivity 1 mV/div
* Maximum Vertical Sensitivity 10 V/div
* Input Impedance (alternate) 50 Ohm
* Maximum Input Voltage 400 Vrms
* Main time base - lowest 200 ps/div
* Main time base - highest 10 s/div
* Timebase accuracy 0.0025 %
* Trigger Source External,Internal
* Trigger Modes Auto,Edge,Logic,Normal,Pulse,Single
* Minimum Trigger Holdoff 16 ns
* Minimum Glitch Trigger 1 ns
* Display modes Dot,Persistence,Vector

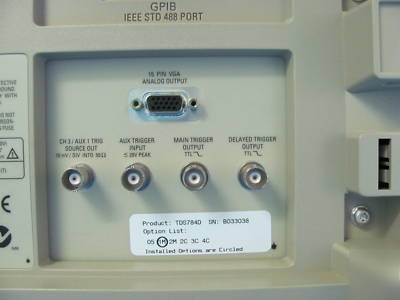

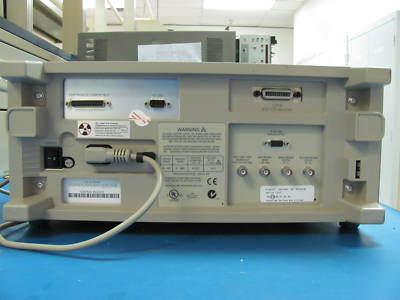

* Ports to Peripheral Devices Centronics,GPIB,RS232
* Test Pattern Storage 10 Patterns
* Programming Language Windows
Improved Internal Record Length: 500 K maximum.
You wont find an oscilloscope with these features, in better condition, for less. This Tektronix TDS 784D is guaranteed to work and comes with our promise not to be D.O.A.
