Toshiba cnc horizontal machining center

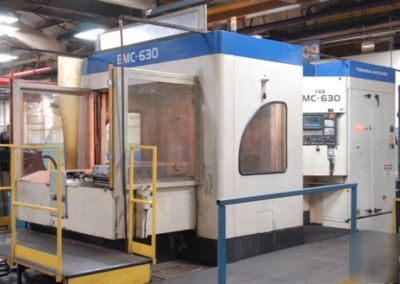

Toshiba CNC Horizontal Machining Center
X-Axis Travel ........................ 39.37"
Y-Axis Travel ........................ 31.5"
Z-Axis Travel ........................ 33.5"
Distance from Spindle to Table ....... 5.9" - 39.4"
Number of Pallets .................... 2
Pallet Work Weight Capacity .......... 2640 Lbs.
Pallet Size .......................... 24.75" x 24.75"
Pallet Indexing ...................... 360,000 Contouring
Spindle Taper ........................ CAT #50
Spindle Speeds ....................... 25-5,000 RPM
Spindle Drive Motor .................. 15 HP
Approx. Floor Space (L x W) .......... 126" x 247"
Approx Machine Height ................ 122"
Approximate Weight ................... 33,000 lbs.
60-Station Automatic Tool Changer
Dual 24.75" x 24.75" Pallets with Auto Pallet Changer
** See Video On Our Website
