Tek tektronix 2 ch 7A26 dual trace amp 200MHZ variable

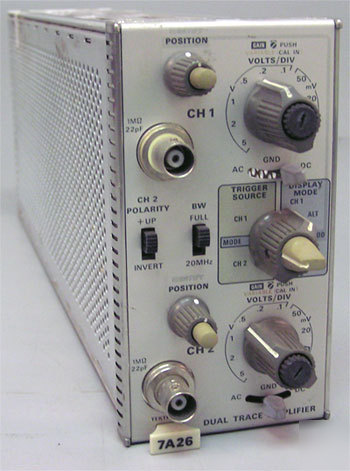

TEK Tektronix 2 CH 7A26 Dual Trace Amp 200MHz Variable
TEK Tektronix 7A26 Dual Trace Amplifier 200MHz Variable
The Tektronix 7A26 is a dual trace amplifier which provides
a bandwidth of 200 MHz in the 7900 and 7100 Series mainframes.
Bandwidth is constant over the entire range of deflection sensitivities
of 5 mV/div to 5 V/div. Bandwidth may be limited to 20 MHz to reduce
displayed noise in lower-frequency applications. It can also be
used in any of the other 7000 Series mainframes but bandwidth
will be limited to the bandwidth of the mainframe.
The 7A26 features five operating modes, trigger source selectability and trace-identify
* trigger source selectability
