Shockwatch & shocklog impact & environmental recorder.

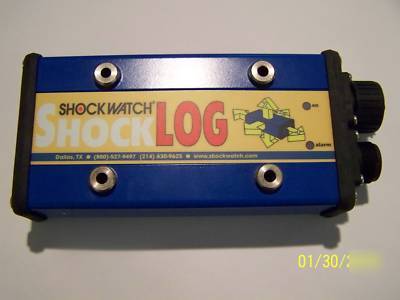

ShockWatch Impact & Environmental Recorders
ShockWatch Impact & Environmental Recorders provide ongoing monitoring of the intensity and duration of shock and vibration to large stationary or moving equipment, structures, and products. Triaxial piezoelectric accelerometer technology is used to record impact direction, amplitude, and duration. Optional sensors also record changes in temperature, humidity, and atmospheric pressure.
This device records the date and time of up to 400 events. It has several unique features, making it especially suitable for applications in which the cost of exposure to out-of-specification environmental influences is very high. The instrument is equally convenient for protecting high-value fixed or mobile installations, or characterizing shock and vibration during transportation.
In normal operation, the device checks the output of the sensors continuously, and dynamically records any impact above a preset level. This dynamic reloading mode offers high-resolution data capture (up to 2048/Hz) and wake-up within 1.5/ms of exceeding the threshold.

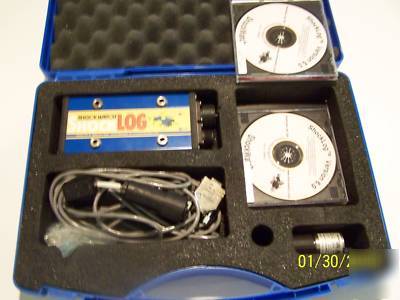

Optional accessories include an environmental indicator and a remote accelerometer to record shock and vibration in areas away from where the device is mounted.
