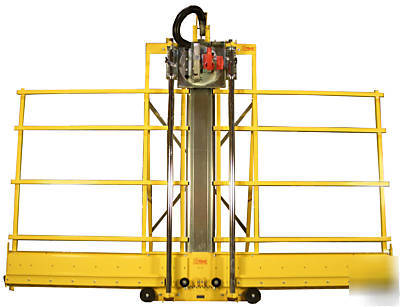

Sawtrax 3062 milwaukee 10" saw x 62" x 10FT panel saw
Saw Trax 3062 Milwaukee 10-1/4" Saw w/ 62" Panel Saw w/ 10ft Frame
3000 Series of Heavy Duty Panel Saws
Steel Sleeve over Roller and Hub
3000 Series of panel saws use 10" blades, the most common blade used in cabinet shops for their table saws and radial arm saws. For cutting Melamine we recommend a HI AT blade such as the Frued LU98R010 or similar blade from Forrest. This is a great choice for trimming doors!
This saw can cut 2 7/8" deep with the dust brush removed or 21/2" deep with the dust brush in place. It is perfect for trimming doors or other thick stock where a long cross cut or rip cut is needed.
The saw motor is taken off it's original shoe and mounted to our shoe using the saw's mounting screws, a motor support bracket/clamp and a handle support bracket. It uses the dust port in the rear of the saw for dust extraction with a dust shield and hose attaching plate. Will not bevel cut or score cut.
2.5" Dust Port, Dust Brush, 2.5"-Dust Hose
Rip Cut in Either Direction, unlimited
2.875" depth off cut max without brush
Nickle Chrome 1/8" wall steel guide tubes, 1.75" OD
2 carriage locks ensures no play when ripping
18 Injected Molded plastic maertial rollers with steel hubs and steel sleeves
18 material support rollers, most in class
1 simple squaring adjustment that locks in place, (rollers don't adjust), doesn't go out of square, factory aligned
Folding stand with wheels for frame
stop, strip bar and left / right tapes
Accu-Glide Steel Sealed Bearings
