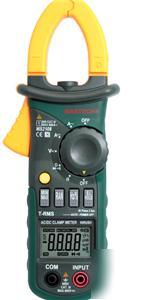

Mastech MS2108 digital 600A clamp on meter multimeter
Mastech MS2108 Digital True-RMS Clamp on Meter with In-rush Current Measurement
The newly released Mastech MS2108 is a versatile and invaluable tool for electricians, technicians, professionals and alike. It's small in size and can be easily be used with one hand. You can use it to measure AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, continuity and even diode test. This true RMS clamp meter has inrush current measurement, which is designed to capture inrush current accurately and , most importantly synchronously and provide readings that accurately depict what the circuit protector experiences.
DC current: 66A/660A 3.0%
AC current: 66A/660A 3.0%
DC voltage: 660m/6.6/66/600V 0.8%
AC voltage: 660m/6.6/66/600V 1.0%
Resistance: 660/6.6k/66k/660k/6.6M 1.0%, 66M 2.0%
Capacitance: 6.6 /66 /660 /6.6m/66mF 4.0%
Frequency: 10 to 10kHz 2.0% (from test terminal)
Frequency: 10 to 1kHz 2.0% (from current clamp)
Duty cycle: 10% ~ 95% 3.0%
Continuity checking with buzzer
MAX. Diameter for conductor: 26mm
Weight: Approx. 340g (w/o battery)
Conform to the IEC61010-1 & IEC61010-032 standard
Double insulation (protection class 600V CAT III and pollution degree 2)
The over-molding rubber case protects the meter to be stronger
Clamp on frequency function
Maximum/minimum value measurement
Mastech MS2108 clamp meter
