> Doall 36 inch vertical bandsaw 115 volt single phase

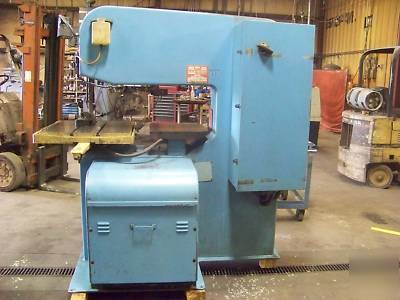

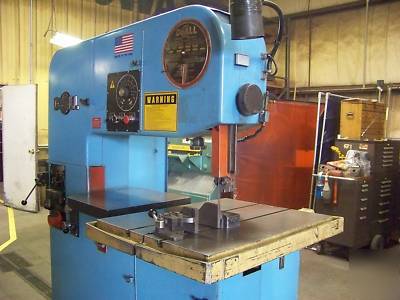

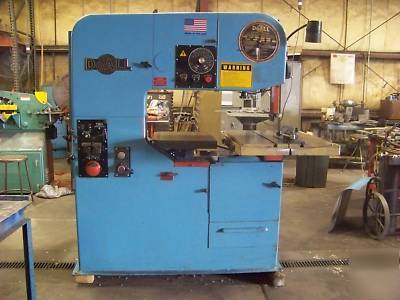

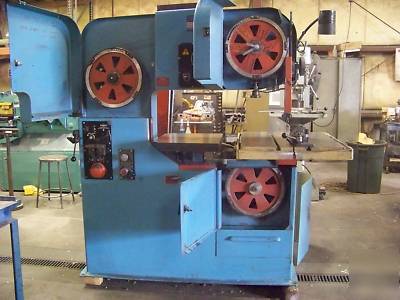

Doall 36 inch vertical bandsaw 115 volt single phase

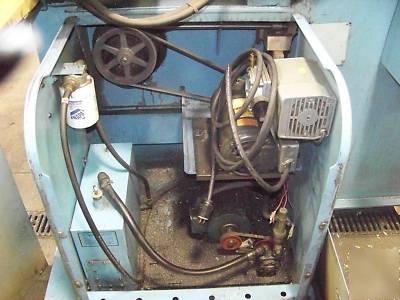

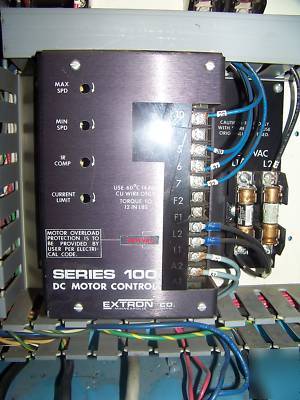

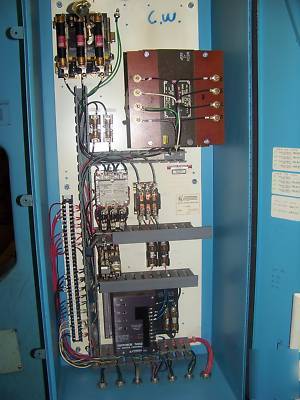

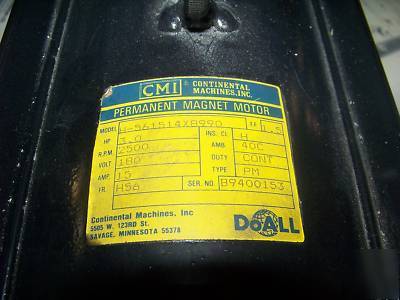

All the features were working fine on this saw until the 100 controller unit in the back electronics box went bad. Everything is run by this controller. We could nto find anyone to replace the controller immediately and we needed to use the saw right now. So we disconnected the motor and replaced it with a high torque 115 volt single phase motor that we had. The saw cuts steel just fine but you only have one speed and none of the other features work without that controller unit.
THROAT, BAND TO COLUMN ........................ 35-1/2"
MAXIMUM WORK HEIGHT ............................... 12"
BAND WIDTH ...................... PRESENTLY 3/4"
SAW BAND LENGTH 2 WHEEL .......................... 125"
SAW BAND LENGTH 3 WHEEL .......................... 175"

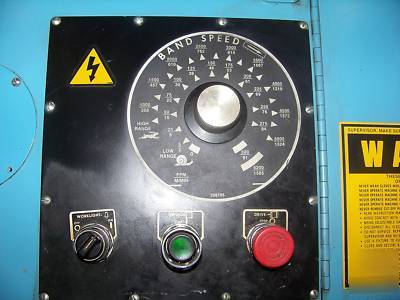

BAND SPEED RANGE, VARIABLE ............... 5 TO 300 FPM
TABLE SIZES .......................... MAIN 24" X 30" ,SIDE 17" X 20"
TABLE STROKE ...................................... 12"
TABLE FEED HYDRAULIC ........................ 0 - 6 FPM
TABLE FEEDING FORCE ....................... 0 - 175 LBS
MAXIMUM WEIGHT ON TABLE ....................... 500 LBS
APPROXIMATE MACHINE WEIGHT .................. 2,000 LBS
APPROXIMATE DIMENSIONS ............... 66" X 74" X 78"H
HI / LOW SPEED TRANSMISSION FOR BLADE SPEED
HYDRAULIC TABLE FEED/WITH HAND CONTROLS

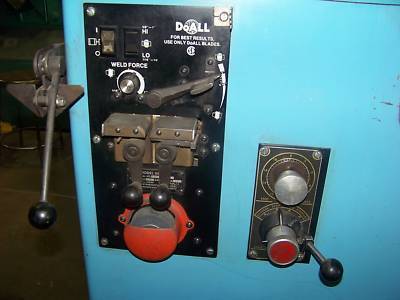

DOALL DBW-15 WELDER/GRINDER/SHEAR
