> New pizzato type fd 535 roller arm limit switch no/nc

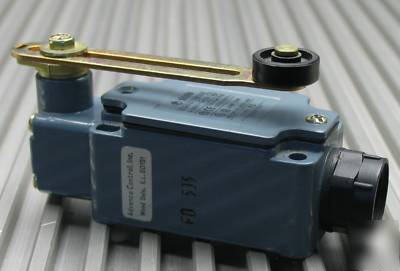

New pizzato type fd 535 roller arm limit switch no/nc
New Pizzato FD 535 limit switch with roller arm. One set normally open contacts, one set normally closed. Bolt pattern 2 3/8" x 1 3/16". 400v, 10(4)amp. Overall dimensions: Body is 2 7/8" long x 1 9/16" wide x 1 7/16" high, actuator head 1 1/8" x 1 1/8" x 1" high, fitting protrudes about 5/8". Arm with roller is 4" long, switch overall length without arm is 4 1/2" with fitting.
