#8162 - 200 hp gardner denver air compressor

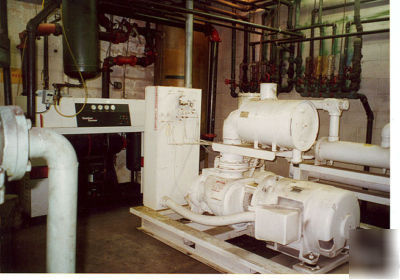

200 HP GARDNER DENVER ELECTRA SCREW MODEL EDP-SA AIR COMPRESSOR
PSIG200 100950 125760 BHP 100225 125220
Oil Flow - Gal/min 10056 12566
Nominal Temperature Rise - F (air/oil disch. minus oil into comp.) 10043 12537
Oil Cooler Hoat Rejection - BTU/min
Aftercooler Hoat Rejection - BTU/min (2)
Radiated heat - BTU/min (3) 935
Oil reservoir capacity - gallons (oil) 17.0
Reservoir vol - cubic feet air above oil lvl 3.4
System capacity - gallons (oil) 21.0
Nominal drive motor speed RPM 3550
Water cooled data Water (4) Temp F
Electrical control panel with digital controls
Unit is reported in excellent condition with 18,000 hrs on motor
