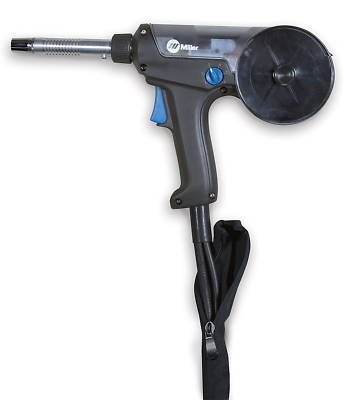

Miller spoolmate 200 aluminum spoolgun # 300497
The Spoolmate 200 Series is designed specifically for Home Hobbyist and Light Fabricators . It's the most
Millermatic 212 Autoset, 251 & 252
Direct Connect ( plugs into the 10 pin port)
Need's adapter cable # 195287 ( no remote WFS)
160 A @ 60 % duty cycle( .023-.035 wires) - perfect for home hobbists & light-duty fabrication shops.
Wire Speed adjustments on the gun- makes it easy to quickly change WFS
20 ft heavy duty cable with cable sheath & strain relief
Easy barrell removal- 9 inch extension , heavy -duty & 45 degree barrell are now available
Two-Stage trigger with built-in-gas valve - allows pre-flow & post flow
Still plugs into the 10 pin connections allowing spoolgun & Mig gun to be hooked up simultaneously.
Hinged wire spool cover makes it easy to access wire compartment
Pressure lever for easy loading & unloading of wire
Clear spool cover shows amount of wire left on spool
Heavy duty motor & cast aluminum gearbox
9 inch extension barrell ( 302592)
* Millermatic 212 Autoset , 251 & 252
.023 - .035 in. , steel and stainless steel
