New beck subminiature rf filters DPT533G

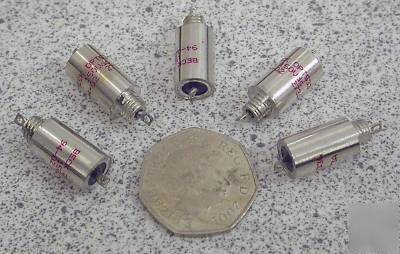

Brand new and unused. Good quality. Model number DPT533G. Made by Beck.
The body size is approx. 10mm diameter by 16mm long. The threaded end is designed to fasten the filter into a panel and is approx. 6mm diameter (1/4"-28 UNF?) by 4mm long, with 5mm wide flats. Nuts and washers are NOT included.
* Rated 150VDC / 90VAC @ 400Hz
* Minimum capacitance = 0.66uF
* Maximum series resistance = 0.6
* Minimum insertion loss @ 30KHz = 6db
* Minimum insertion loss @ 100KHz = 39db
* Minimum insertion loss @ 150KHz = 50db
* Minimum insertion loss @ 300KHz = 68db
* Minimum insertion loss @ 1MHz = 80db
* Minimum insertion loss @ 10MHz = 80db
* Minimum insertion loss @ 1GHz = 80db
Data sheets are available online.
