49" tbl 3HP spdl gmc gmm-949V-pkg w/dro, pf vertical mi
49" Tbl 3HP Spdl GMC GMM-949V-PKG w/DRO, PF VERTICAL MI
49" Table 3HP Spindle GMC GMM-949V-PKG w/DRO, PF VERTICAL MILL, Made In Taiwan, with OEM DRO & Alig

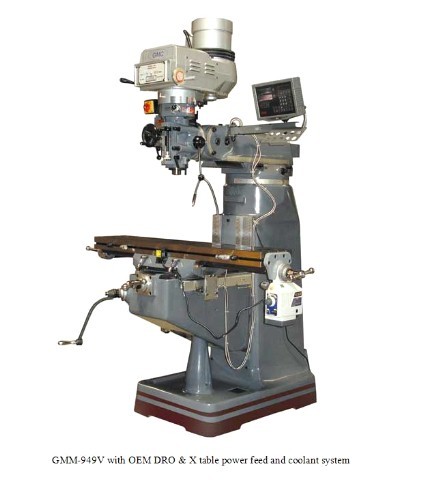

NEW GMC 9" x 49" Table w/Variable Speed Head
Model #GMM-949V-PKG Made In Taiwan
** PACKAGE INCLUDES FREE SINO 2 AXIS DRO and X-AXIS POWER FEED, INSTALLED **
Made in Taiwan - a high quality Mill
Turcite B Coating on X & Y ways
Variable spindle speeds from 70-4,300 rpm
Heavy duty 3 HP AC spindle motor, 3 phase (ideal for tapping jobs,
we strongly recommend the 3 phase mill with a phase converter for
Hardened & ground dovetail guideways
Hand scraped precision vertical ways
Precision hardened & ground ACME Leadscrews
Chromed ground quill ( spindle )
Manual or automatic quill feeds 0.0015, 0.003, 0.006 IPR
front and rear rubber chip guards
Specify either 220V or 440V, 3 phase
One year industrial warranty for parts
Quill ( Spindle ) diameter 3 3/8
DRO, Upgrade to NEWALL C80 # NW-949-2, 2 axis, free installation
DRO, Upgrade to NEWALL C80,# NW-949-3, 3axis, 3rd on quill or column
DRO, Upgrade to SINO, # SINO-3, 3 axis
Power air draw bar, High Quality( USA)# HQR8
Base coolant/chip drop pan# COOL-PAN
Power feed # FP-180Z, Taiwan ALIGN, Z axis
52 pcs clamping kit # # 900-0001, -13NC stud, 5/8 T-slot
11 pcs R8 collets set # 900-0007, 1/8 - 7/8
Phase converter # PAM-300HD, USA, for single phase operation
Mill package # 3, includes the following:
6 vise #900-0021, collet set #900-0007, Clamping Kit #900-0001,
20pc Titanium end mill set #8000-0020, 29pc Titanium drill bit set #5000-0001T
