> Dso-2150 150MSA/s pc usb digital storage oscilloscope

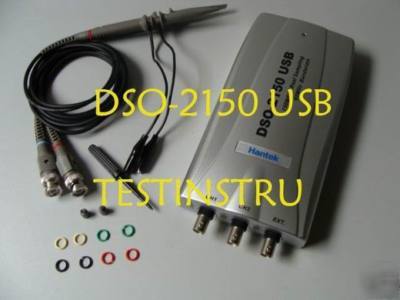

Dso-2150 150MSA/s pc usb digital storage oscilloscope
32Driver 64Driver Software Manual
recommended temperature of 25 degrees and the humidity is 75%, in the mixed state of uses. . Non-operating temperature: -25 degrees to +70 degrees a relative humidity: 5%-95%
Minimum system requirements for installation and operation SOftscoPe, you should have the following system configuration: OS
Windows98 / ME / 2000 / XP / Vista (32 bit system)
CPU / main version of the Pentium 200 MHz or higher, with the main version of USB interface. M-32 HDD storage
20M-bit graphics card Microsoft DireCtx screen resolution: 800 x600 Color Depth: 16
1. DSO2090 / 2150/2250 Pc Softscope is based on the portable digital storage oscilloscope. High-performance Dso2090 / 2150/2250 has the following features: 40 / 60/100MHz: analog bandwidth, l00Ms/S-150Ms/S-250Ms/S: real-time sampling. USB connection Dso2090 / 2150/2250 Pc with a USB interface connector, 12MbpS communication speed.
Dso2090 / 2150/2250 with senior trigger circuit, it can detect many of the complex signal. Dso2090 optimal cost / 2150/2250 many high-speed performance can be compared Dso SCM.
Dso2090 / 2150/2250 without an external power supply, because of its power from the USB interface.
2. Is a control Dso2090 / 2150 / 2250 of windows software. Easy to use
Dso2090 / 2150 / 2250 Softscope easy-to-use, it is intuitive and easy to understand. Big screen
Dso2090 / 2150 / 2250 Softscope use 720 * 480 screen size. Multiple data formats
Dso2090 / 2150 / 2250 Softscope can waveform storage with the following format: DAT file, JIP / BMP graphics files, Eexcel / word document.
Dso2090 / 2150 / 2250 Softscope with 23 kinds of measurements.
The use of hand-way analog oscilloscope makes a show results.
3 Dso2090 / 2150 / 2250 Virtual PC USB-based digital storage oscilloscopes
DSO2090/2150/2250 change before and after contrast brightness button:
DSO2090/2150/2250 oscilloscope afterglow effect can be seen the digital storage oscilloscope simulation results, so that you can more clearly see the line frequency signal
DSO2090/2150/2250 USB Softscope virtual oscilloscope functions of the Import and Export
Make you more easily found two waveform differences.
DSO2090/2150/2250 Softscope the Lissajous XY graph, used to analyze the relevance of the waveform can be
The reference waveform frequency, amplitude, phase, to compare
DSO-2090/2150/2250 Softscope Math: adds, subtracts, multiplies, with the exception of computing
DSO2090/2150/2250 points and data-line button allows you to a more intuitive waveform analysis
DSO2090/2150/2250 Softscope cursor measurements with a variety of ways
You meet the needs of various precision measurement
DSO2090/2150/2250 Softscope waveform with a variety of preservation:
DAT \ BMP \ JPG \ Word \ Excel future Show your convenience, and can be printed
DSO2090/2150/2250 Softscope bandwidth restrictions, so that you observe the low-frequency signal,
- This point, you may be found in the above miracle
DSO2090/2150/2250 Softscope FFT spectrum analysis features that make you more that can be observed in a variety of frequency signal,
Find the root of the problem, so that many of the issues and not the blade solution. Spectrum Analyzer 0 HZ-6250MHz(The Greatest)
DSO2090/2150/2250 Softscope sentinel waveform observation time, the more easily you Analysis
DSO2090/2150/2250 Softscope some measuring more than 20 kinds of ways, too, is very effective,
The results show that direct measurement approach, you can save it, add, delete (without a multimeter)
DSO2090/2150/2250 Softscope horizontal position and the trigger point choice
DSO2090/2150/2250 Softscop high-low settings need input waveform
Rising edge and falling edge of the percentage of the value of the configuration used to measure the rising edge and falling edge of time
DSO2090/2150/2250 Softscope set sampling point average, thus the more realistic waveforms
If you DSO2090/2150/2250 Softscope not like the color of the horizon, you can
Set their own preferred one color, there are always those you prefer a color bar.
DSO2090/2150/2250 Softscope labelling on the screen: background and figures or other colors can be changed,
Following their attempt to effect it.
DSO2090/2150/2250 Softscope right panel:
DSO2090/2150/2250 Softscope the panel:
DSO2090/2150/2250 Softscope on the panel:
- A peak, maximum, minimum, mean, rms, intermediate and high-voltage, low-voltage is regulated negative regulator, the average cycle rms cycle, cycle, frequency, pulse width is negative pulse width, rise time (10% an 90%), the whereabouts of the time (10% an 90%), is accounted for air circulation, the negative cycle of the air
Time / frequency poor, poor voltage frequency (FFT mode only)
Adds, subtracts, multiplies, with the exception of
Rectangular, Hanning, Haining, Bulaikeman window
No external power from the USB port from power
2 Channels OR 3 Channels (Ext)
4ns,10ns,20ns,40ns,0.1us,0.2us,0.4us,1us,2us,4us,
10us,20us,40us,0.1ms,0.2ms,0.4ms,1ms,2ms,4ms,
10ms,20ms,40ms,0.1s,0.2s,0.4s,1s,2s,4s,10s,20s,40s
1 min,2 min,4 min,10 min, 20 min ,40 min , 1hour /Each grid
Yes/DSO-2150 USB(30Hz to 60MHz)
10K-32KB/Channel Or maximum 64KB
150MS/s OR 75MS/S TWO Channels Use
2. Softscope installation Important! In the use of DSO2090 / 2150/2250 Softscope software to be installed.
Insert the installation CD to a CD ROM drive.
2. Installation should start automatically, otherwise, in the browser, find a CD ROM
3. Installation, click "Next" (next) continue.
4. If you accept the license agreement, click "YeS" (is) to continue.
5. (Fill in the user's information and serial number) Click "Next" (next) continue,
Driver-run Setup Next-Next-Finish
The demonstration model, "Lgnore" as a sequence
6. Choose whether or not to restart the computer (or may not re-activated),. The installation is complete.
In Dso2090 / 2150/2250 must be installed before use Softscope software. This step should be in the first connection has been completed
1. A line connects to the USB front-USB port of your computer (black line communications / red power lines - can be used only black, mainly to prevent supply shortfall).
2. Connects to the USB DSO2090 front-line B / 2150/2250 the USB port.
3. DSO2090 / 2150 / 2250 will be automatically detected.
4. DSO2090 / 2150 / 2250 document DSOXXXX.SYS drive will be set at a CD ROM Drives in the root directory.
5. DSO2090 / 2150 / 2250 drive will be used for the first time documents were found two drivers1 and driver2, with a corresponding DSOXXXX1.SYS and DSOXXXX2.SYS (drive Drivers below)
3 probe calibration. Dso2090 / 2150/2250 probe calibration.
1. When DSO2090 / 2150/2250 in the production, the probe was manual calibration order to obtain the best performance.
2. After the purchase of every four or five months you may have to be
Probe to a general compensation calibration KHz square wave
3. First connect when the probe should be compensation.
4. CAL connection calibration signal to channel 1, and then click "AUTOSET" (automatic settings) examinations showed that the waveform.
5. Probe was adjusted until the waveform compensation.
Compensation normal, excessive compensation owed compensation
Detection DSO2090/2150/2250 state, USB connectivity, under normal circumstances flashing light.
2. Connect with oscilloscope probe calibration signal output ch1-CAL
4 Voltage / time base, you can use Softscope, and the right panel operation
5 Then interface waveform is displayed:
6 You can also measured through the cursor test answers
This is mainly to the frequency waveform analysis components
Human 50 Hz signal measurement
Text: the button text format information FFT
To Excel: the button using ActiveX, automatic conversion FFT information in MS Excel Format
BMP save: Bitmap the button to preserve information FFT
JPG save: the button to the preservation of the FFT JPG data
Labview Example (Operations This step is necessary
2.60Mhz probe X 2 PCS: (1:1, 1:10) pp80
3.DSO-2150 USB Software package
4.Installation Manual in English
