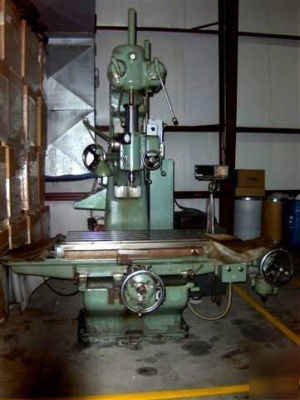

#1836 cleereman jig drilling and boring machine #25579
#1836 CLEEREMAN "MASTER" SINGLE SPINDLE LAYOUT TYPE
JIG DRILLING AND BORING MACHINE
Serial No. CJB-266, Model "Master 1836"
Table Dimensions (Overall) W x L....... 22" x 44"
Longitudinal Table Travel.............. 36"
Cross Table Travel..................... 18"
Vertical Spindle-Head Adjustment....... 12"
Vertical Spindle Travel, Power......... 9"
Spindle-Face to Table, Maximum......... 27-1/2"
Spindle-Center to Column Ways.......... 17-1/2"
Spindle-Center to Column Throat........ 21-1/2"
Quill Diameter......................... 4-1/2"
(9) Spindle Feeds, Range............... .001 to .010 IPR
Spindle Motor, Horsepower/RPM.......... 2 HP
Floor Space Required, W x D............ 7'10" x 7'
Weight, Approximately.................. 9500 LBS
PRICE: F.O.B. OUR WAREHOUSE............ $2.950.00
