5' x 13" giddings & lewis chipmaster 15 hp radial drill

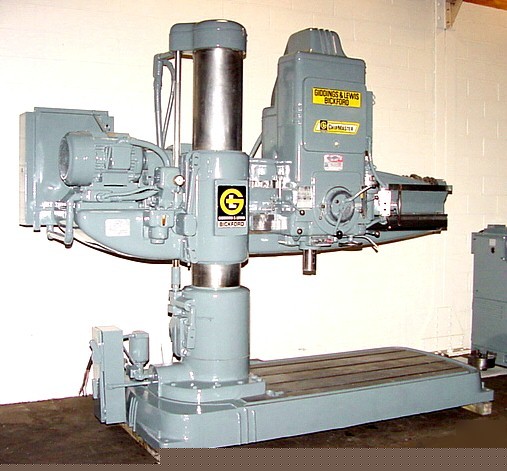

5' x 13" GIDDINGS & LEWIS CHIPMASTER 15 HP RADIAL DRILL
5' x 13" GIDDINGS & LEWIS RADIAL DRILL
MODEL: CHIPMASTER, S/N: 953-00240-75, NEW: 1975
FACE OF COLUMN TO CENTER OF SPINDLE:
MAXIMUM .................................. 5'6"
MINIMUM .................................. 21-1/4"
HORIZONTAL TRAVERSE OF HEAD ON ARM ......... 3'8"
MAX SPINDLE RADIUS ......................... 5'9"
MAX DISTANCE SPINDLE TO BASE ............... 5'
MIN DISTANCE SPINDLE TO BASE ............... 9-1/2"
WORKING SURFACE OF BASE .................... 3'6" x 5'11"
SPINDLE TRAVEL ............................. 20"
QUILL DIAMETER ............................. 4-9/16"
TAPER ...................................... #5 MT
SPINDLE SPEED RANGE (36) ................... 10 - 1250 RPM
SPINDLE FEED RANGE (18) .................... .004 - .125 IPR
THREAD TAP LEADS (6) 8, 11-1/2, 14, 18, 20, 27
APPROX WEIGHT .............................. 16,500 LBS
APPROXIMATE DIMENSIONS ..................... 41"W x 101"L
POWER ELEVATION & CLAMPING OF ARM ON COLUMN
POWER TRAVEL & CLAMPING OF HEAD ON COLUMN
INSPECT UNDER POWER IN OUR NEW JERSEY
CONDIRTION: **** EXCELLENT ****
