> Tektronix 2465B 400MHZ 4 channel oscilloscope w/ manual

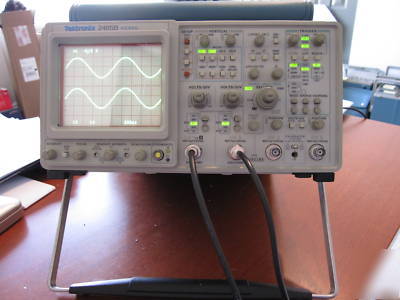

Tektronix 2465B 400MHZ 4 channel oscilloscope w/ manual
This unit is used but has been pulled from a working environment and is in excellent working condition! The unit has very little wear on the physical unit itself. I would rate this unit as being 9.0/10 for cosmetic condition as there are no deep scratches or dents.

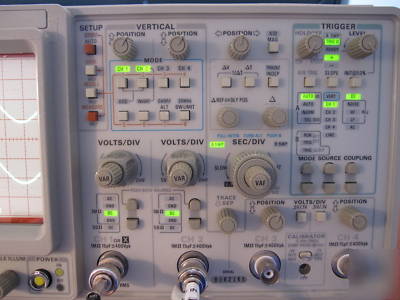

All functional features (such as vertical / horizontal scaling, triggering, etc) on the 2465B have been fully tested and verified. All four channels have been tested and are fully operational.

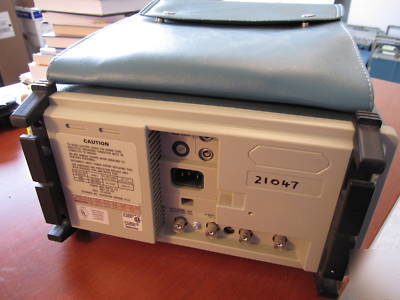

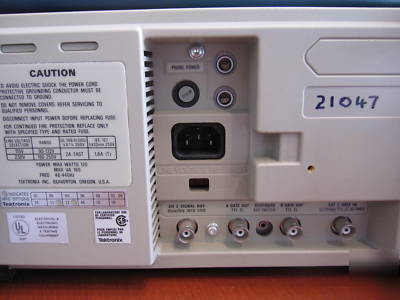

11 - Two probe power connectors
Unit comes with original operator manual and power cord.

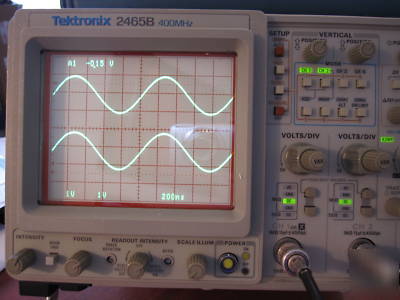

The Tektronix 2465B oscilloscope is a graph-displaying device it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.
The Tektronix 2465B oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the moving parts of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.
Performance Characteristics of the 2465B
Maximum Input#2 (for Impedance #2)
