Nissei-gtr dual shaft gearmotor hlmn-18T-160-S40 100V

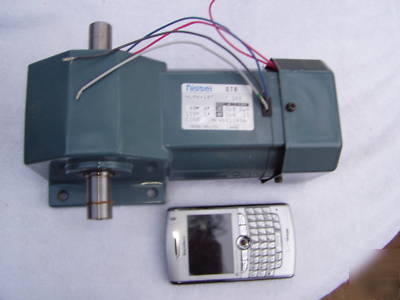

For sale is one, new in box Nissei-GTR .04kW dual shaft gearmotor with brake, Model HLMN-18T-160-S40. The motor is 4 pole and 100v. This is a high precision motor and gearbox combination designed to have maximum speed control and minimum backlash. The specifications below are from the Nissei web site.
Frame number and output shaft diameter
Output shaft direction (when viewed from input side)
Reduction ratio (actual reduction ratio)
Induction gearmotor with Brake
Rated Currect/Rated Motor Speed /Capacitor
100V / 50Hz / 0.61 A / 1350 rpm / 10 F
100V / 60Hz / 0.66 A / 1650 rpm / 10 F
100V / 50Hz / 0.90 A / 800-1350 rpm / 12 F
100V / 60Hz / 0.90 A / 1050-1650 rpm / 12 F
Allowable inertia moment (allowable GD2)
(motor shaft or input shaft converted value)
0.00020 kg m2 ( 0.00080 kgf m2)
* The output shaft rotation speed is derived from the motor s synchronous rotation speed and nominal reduction ratio.
