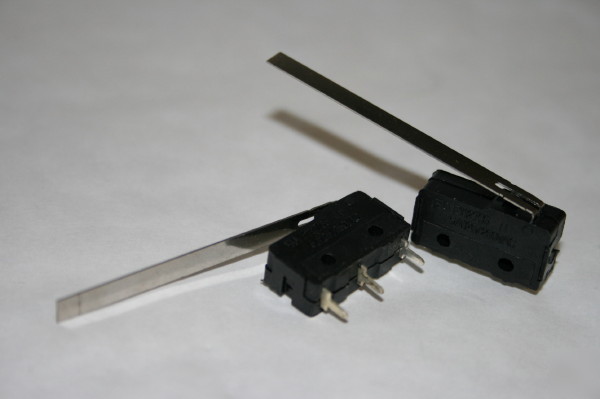

Minature microswitch 5A 250V with long lever FD1C1
MINIATURE MICRO SWITCH WITH LONG LEVER
Manufactured by NTE as their model number CSM3580C, these are a subminiature micro switch with an unusually long steel activation lever.
5A 250V rating SPDT - so a single pole change over switch with solder tag contacts, 5A contacts in a switch of this physical size is quite high.
Quite a sensitive switch, only requires 15g force to operate. Often used as equipment cover alarm switches etc.
Max pre-travel distance before actuation: 7.5mm
Max over-travel distance after actuation: 5mm
Dimemsions of the body are approxiamatly 20mm x 11mm plus connections, 3mm mounting holes are at 10mm centres.
