5.3" mitsubishi floor type horizontal boring mill

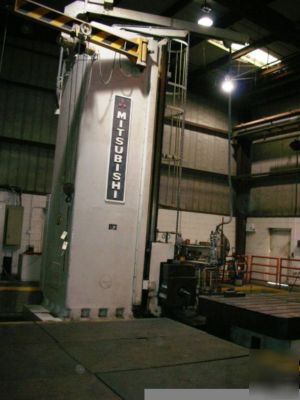

5.3" Mitsubishi Floor Type Horizontal Boring Mill
Spindle Diameter ..................... 5.31"
Taper In Spindle ..................... #50
Vertical Travel, Y-Axis .............. 157.48"
Horizontal Travel, X-Axis ............ 236.22"
Spindle Travel, Z-1 Axis ............. 39.37"
Headstock Travel, Z-2 Axis ........... 23.62
Combined Travel, Z1 & Z2 ............. 62.99"
Spindle Speeds ....................... 4-810 RPM
Mitsubishi Model: DIT-A 21 x 30
Table Size ........................... 82" x 118"
Rotation ............................. Power
Feeds ................................ .04 to 126 IPM
Table Footprint (L x W x H) .......... 184" x 105" x 46"
Table Weight ......................... 35,200 lbs.

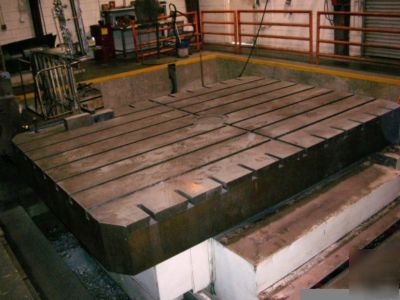

82" x 118" Mitsubishi Infeeding Rotary Table
(2) 102" x 180" x 10" Heavy Duty T-Slotted Floor Plates

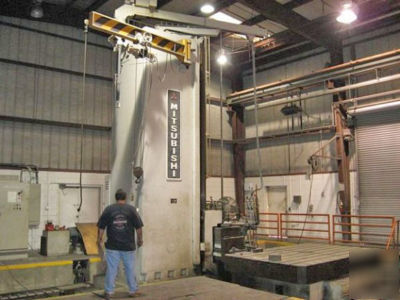

1-Ton Jib Crane on Column Face
Machine Dimensions (L X W x H) 472" x 145" x 293"
