Trucheck usb bar code verifier

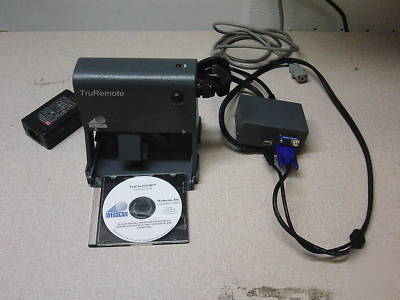

TruCheck USB device. Used once to test functionality before company shutdown. This system is pristine, includes software CD and is ready to go right out of the box.
This unit cost $12,000 when new. This is in like new condition, unpacked and then repacked, it has been sitting in a box for a year.

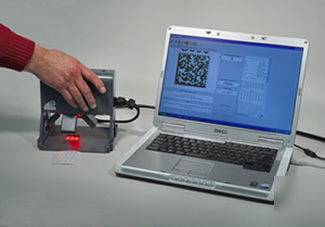

Results with the touch of a button. Proven Accuracy, Repeatability and Ease-of- Use from Webscan, the bar code experts. Webscan, the leader in standards compliant bar code verification, takes all the hassle out of 2D bar code verification. TruCheck USB provides a fully integrated and portable TruMatrix imaging head that connects to a PC through the USB port. Simply position the imager over a bar code and press the button. Clear and concise results are displayed instantly. The graphic interface shows operators clearly where potential problems exist. The TruMatrix imager features integrated illumination and a rugged housing. There is nothing to focus and nothing to align. You are guaranteed the most accurate and repeatable verification results.
Meets UID (Unique Identification) DOD Requirements
All Webscan systems are calibrated and fully traceable to NIST standards. Calibration is performed by the user in a matter of seconds. You always know that your system is measuring accurately. There is never a question of accuracy with Webscan technology.
Fully Compliant with ISO 15415:
Data Matrix ECC 200 (ISO 16022)
QR Code and Micro QR Code (ISO 18004)
Fully Compliant with AIM DPM Standard
Fully Compliant with ISO 15416
Linear Symbologies such as Code 128
CCD Imager with Integrated Illumination
Data export to printer, PDF file or Excel
Calibrated to NIST traceable standards
Parses and validates industry standard data formats
GS1-DataBar (formerly RSS), GS1-Composite Symbology
UPC/EAN, Code 128, Code 39, TLC-39, Codabar, PDF 417, Micro PDF 417 (limited to Field of View size)
Decoding/Grading Analysis Specifications:
Full ISO 15415 and ISO-15416 Grading A, B, C, D, F: Unused Error Correction, Modulation, Axial non-uniformity, Grid non-uniformity, Symbol Contrast, Reference Decode, Finder Pattern Damage, Bar Width Growth (X and Y), Quiet Zone, AIM DPM Grading: Cell Contrast, Cell Mod. Full 10 scan ANSI X3.182
TruCheck is simply the most accurate bar code verifier on the market! If you are tired of the inconsistent results that hand-held verifiers produce, TruCheck is the system for you!

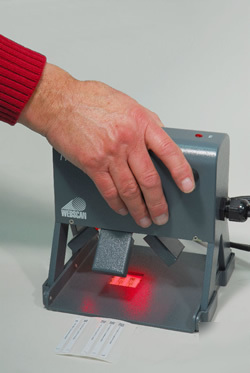

Engineered for repeatability, the TruMatrixTM imaging head, combined with integrated 45 degree illumination and rugged housing, provides ideal conditions for verification with the CCD-based imager. After simple calibration, there is nothing to focus or align. You are guaranteed the most accurate and stable verification results available. TruMatrix eliminates operator variables resulting in accurate results.
Optional linear verification can be accomplished by expanding TruCheck with the TruSweep laser scanning head for linear and 2D (PDF417 & RSS) verification. With the touch of a button, the TruSweep head automatically provides multiple scans from top to bottom on the code.
The product brocure can be seen here: http:// /PDFS/TruCheck%20USB%20brochure-std.pdf
