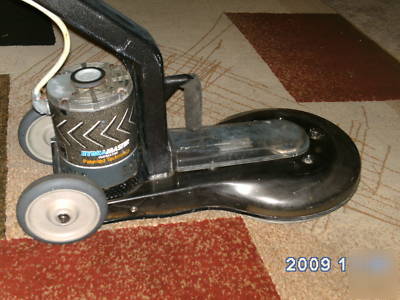

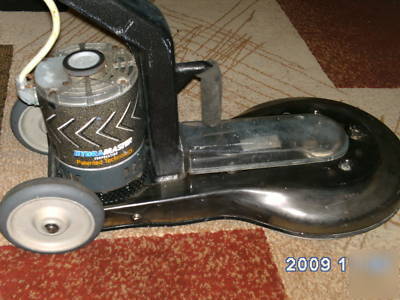

Rotary dry master
What is Jetless Cleaning Technology?
DriMaster s patented process replaces the ordinary spray jet with a dynamic high-flow, high-recovery cleaning head. Because a wand s spray jets are located well above the carpet, much of the potential heat is lost before the solution ever reaches the surface. The RDM eliminates this heat loss problem with a precision slot angled towards a matched vacuum recovery port creating a highly effective Cleaning Zone . The cleaning solution is applied as a sheet rather than a jet spray, allowing controlled penetration of the fiber without wetting the carpet backing. This high-flow/high-recovery technology will maximize the heat and vacuum performance of any cleaning system, truckmount or portable.
Patented Technology Cleans Carpets Fast
Carpet Cleaning can be Hard Work
Designed to Excel in Residential Cleaning.
can pass right over heat registers, drapery
cords or electric cords without damage or tangling.
Rotary Power Tool Specifications:
* Dimensions: 13" W, 30" H, 34" L
* Motor: 115 v, 7.9 amp, 60Hz, 1/2 Hp, 1725 rpm
* Drive System: Reduction belt drive
* Cleaning Heads: Three (3) stainless steel patented cleaning heads
* Handle Assembly: Foam grips, adjustable height
* Transporting Wheels: 6" diameter, 1-1/4" wide grey, non-marking wheels
* Electric Cord: 50', 14/3 gauge
