New 72" finish mower FMN180 cat.1 3PT 20+hp rating

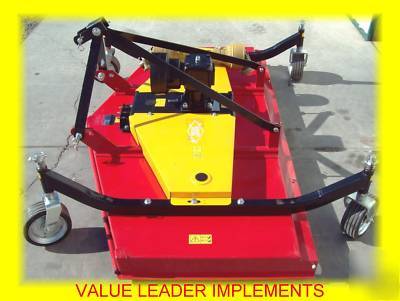

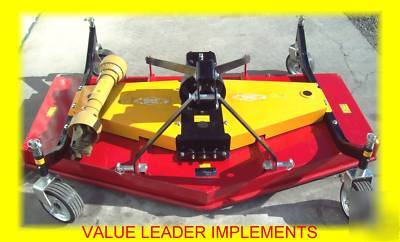

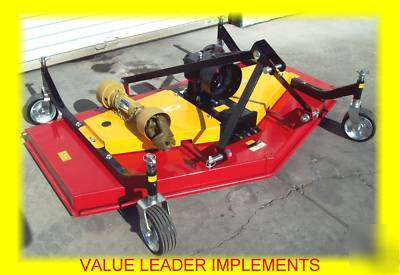

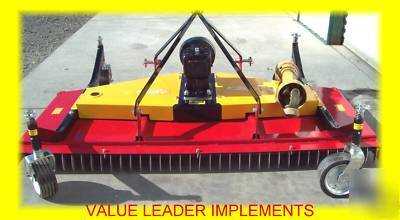

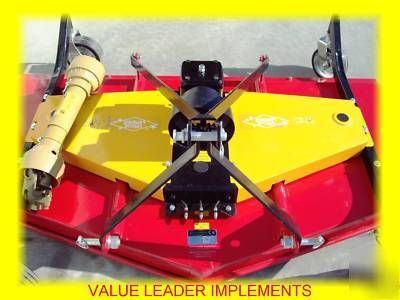

New VALUE LEADER Cat. 1 - 3PT 72 Finish Mower FMN-180
* Standard Category 1 3Pt. hitch mount. Designed for 20HP+ Rated Tractors
* This Full Length Rear Discharge Finish(Grooming) mower is designed for homeowners,campuses, parks, and well maintained lawn & turf surfaces
* The Full Length Rear Discharge cutting deck will provide quality cut and clipping distribution when grass is cut on a frequent basis and ground conditions are not wet.
* Floating 3pt systems allows mower to closely follow ground contours resulting in a quality cut
* Rear Damper System to prevent piling and clumps
* Heavy Duty all steel reinforced deck (Frame-Over-Deck design)
* Front and Top access to Grease points
* Easy Access Belt Tensioning System
* Blades are heat treated alloy steel with Medium Lift
* Blade Spindles are Cast Iron Greasable Hubs
* 1/4" Tubular Wheel Arms for increased strength

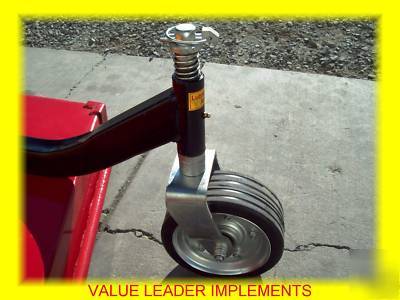

* Turff Friendly 3" x 8" Solid Rubber Wheels with Greasable Hubs

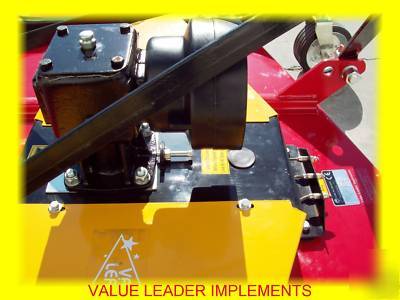

* Cast Iron Gearbox Rated to 45HP
* Includes 540RPM 6-Spline 38 PTO Driveline w/ Shear Bolt
* Some assembly required (3/4 hr.) Attaching Lower 3 Pt. Bracket, Discharge Chute, Feed Chute, Base with Nuts & Bolts, checking all nut and bolts for tightness, greasing, Your Ready To Go!
Will attach to the following Tractor Brands with Cat.1 3Pt Hitch
John Deere, Kubota, Massey Ferguson, Ford, New Holland, International, Jinma, Yanmar, Mahindra, Montana, Branson, Case, Cub Cadet, Farm Pro, Farmall, Foton, Iseki, Kioti, Mitsubishi, Nortrac, Rhino, SAME, Satoh, TYM, Tytan, Zetor and any other tractor using the international standard Cat.1 3Pt 1 3/8" 6 Spline PTO
Value Leader VL FMN Series Finish Mowers Specifications
Blade - Qty - Size & Lift Type
2 3/4" Housing w/ 1" Grease-able Spindle
Caster Wheel Spindle Size/Type
Ball Bearing with 1" Grease-able Spindle
Series 4 - 1 3/8" 6-Spline 32" w/ Shear Bolt
Series 5 - 1 3/8" 6-Spline 32" w/ Shear Bolt
Series 5 - 1 3/8" 6-Spline 38" w/ Shear Bolt
